Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true > Class Template Reference

Specialization of CCTpfaFacetCouplingFicksLawImpl for dim<dimWorld. More...

#include <dumux/multidomain/facet/cellcentered/tpfa/fickslaw.hh>

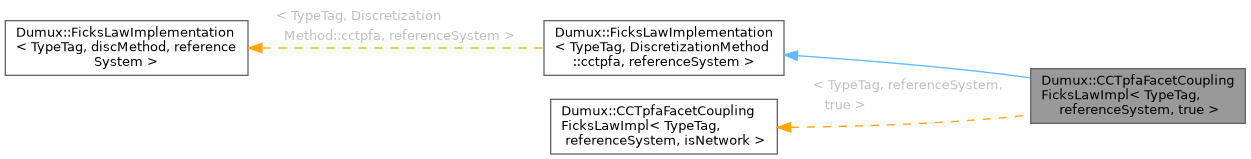

Inheritance diagram for Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true >:

Description

template<class TypeTag, ReferenceSystemFormulation referenceSystem>
class Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true >

Specialization of CCTpfaFacetCouplingFicksLawImpl for dim<dimWorld.

Public Types
using	Cache = FacetCouplingFicksLawCache
	export the type for the corresponding cache
using	DiffusionCoefficientsContainer = FickianDiffusionCoefficients<Scalar, numPhases, numComponents>

Static Public Member Functions
static constexpr ReferenceSystemFormulation	referenceSystemFormulation ()
	Return the reference system.
template<class Problem, class ElementVolumeVariables, class ElementFluxVarsCache>
static ComponentFluxVector	flux (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, int phaseIdx, const ElementFluxVarsCache &elemFluxVarsCache)
	Compute the diffusive fluxes.
template<class Problem, class ElementVolumeVariables>
static Cache::DiffusionTransmissibilityContainer	calculateTransmissibility (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, unsigned int phaseIdx, unsigned int compIdx)
static ComponentFluxVector	flux (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, const int phaseIdx, const ElementFluxVariablesCache &elemFluxVarsCache)
	return diffusive fluxes for all components in a phase
static Scalar	calculateTransmissibility (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, const int phaseIdx, const int compIdx)
	compute diffusive transmissibilities

Static Public Attributes
static const DiscretizationMethod	discMethod = DiscretizationMethod::cctpfa
	state the discretization method this implementation belongs to

Member Typedef Documentation

Cache

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

using Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true >::Cache = FacetCouplingFicksLawCache

export the type for the corresponding cache

DiffusionCoefficientsContainer

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

using Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::DiffusionCoefficientsContainer = FickianDiffusionCoefficients<Scalar, numPhases, numComponents>

inherited

Member Function Documentation

calculateTransmissibility() [1/2]

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

template<class Problem, class ElementVolumeVariables>

Cache::DiffusionTransmissibilityContainer Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true >::calculateTransmissibility ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, unsigned int phaseIdx, unsigned int compIdx )

inlinestatic

use the standard Fick's law and only compute one transmissibility

xi factor for the coupling conditions

calculateTransmissibility() [2/2]

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

Scalar Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::calculateTransmissibility ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, const int phaseIdx, const int compIdx )

inlinestaticinherited

compute diffusive transmissibilities

flux() [1/2]

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

template<class Problem, class ElementVolumeVariables, class ElementFluxVarsCache>

ComponentFluxVector Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true >::flux ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, int phaseIdx, const ElementFluxVarsCache & elemFluxVarsCache )

inlinestatic

Compute the diffusive fluxes.

flux() [2/2]

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

ComponentFluxVector Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::flux ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, const int phaseIdx, const ElementFluxVariablesCache & elemFluxVarsCache )

inlinestaticinherited

return diffusive fluxes for all components in a phase

referenceSystemFormulation()

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

constexpr ReferenceSystemFormulation Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true >::referenceSystemFormulation ( )

inlinestaticconstexpr

Return the reference system.

Member Data Documentation

discMethod

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

const DiscretizationMethod Dumux::CCTpfaFacetCouplingFicksLawImpl< TypeTag, referenceSystem, true >::discMethod = DiscretizationMethod::cctpfa

static

state the discretization method this implementation belongs to

---

The documentation for this class was generated from the following file:

• multidomain/facet/cellcentered/tpfa/fickslaw.hh
