Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem > Class Template Reference

Fick's law for cell-centered finite volume schemes with two-point flux approximation. More...

#include <dumux/flux/cctpfa/fickslaw.hh>

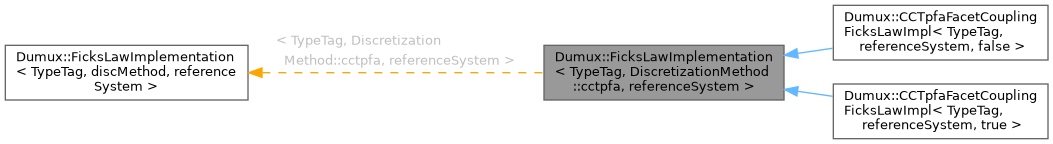

Inheritance diagram for Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >:

Description

template<class TypeTag, ReferenceSystemFormulation referenceSystem>
class Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >

Fick's law for cell-centered finite volume schemes with two-point flux approximation.

Public Types
using	Cache = TpfaFicksLawCache
	state the type for the corresponding cache and its filler
using	DiffusionCoefficientsContainer = FickianDiffusionCoefficients<Scalar, numPhases, numComponents>

Static Public Member Functions
static constexpr ReferenceSystemFormulation	referenceSystemFormulation ()
	Return the reference system.
static ComponentFluxVector	flux (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, const int phaseIdx, const ElementFluxVariablesCache &elemFluxVarsCache)
	return diffusive fluxes for all components in a phase
static Scalar	calculateTransmissibility (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, const int phaseIdx, const int compIdx)
	compute diffusive transmissibilities

Static Public Attributes
static const DiscretizationMethod	discMethod = DiscretizationMethod::cctpfa
	state the discretization method this implementation belongs to

Member Typedef Documentation

Cache

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

using Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::Cache = TpfaFicksLawCache

state the type for the corresponding cache and its filler

DiffusionCoefficientsContainer

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

using Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::DiffusionCoefficientsContainer = FickianDiffusionCoefficients<Scalar, numPhases, numComponents>

Member Function Documentation

calculateTransmissibility()

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

Scalar Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::calculateTransmissibility ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, const int phaseIdx, const int compIdx )

inlinestatic

compute diffusive transmissibilities

flux()

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

ComponentFluxVector Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::flux ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, const int phaseIdx, const ElementFluxVariablesCache & elemFluxVarsCache )

inlinestatic

return diffusive fluxes for all components in a phase

referenceSystemFormulation()

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

constexpr ReferenceSystemFormulation Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::referenceSystemFormulation ( )

inlinestaticconstexpr

Return the reference system.

Member Data Documentation

discMethod

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

const DiscretizationMethod Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::cctpfa, referenceSystem >::discMethod = DiscretizationMethod::cctpfa

static

state the discretization method this implementation belongs to

---

The documentation for this class was generated from the following file:

• flux/cctpfa/fickslaw.hh
