Dumux::Properties::RANSModelTraits< dimension > Struct Template Reference

Traits for the Reynolds-averaged Navier-Stokes model. More...

#include <dumux/freeflow/rans/model.hh>

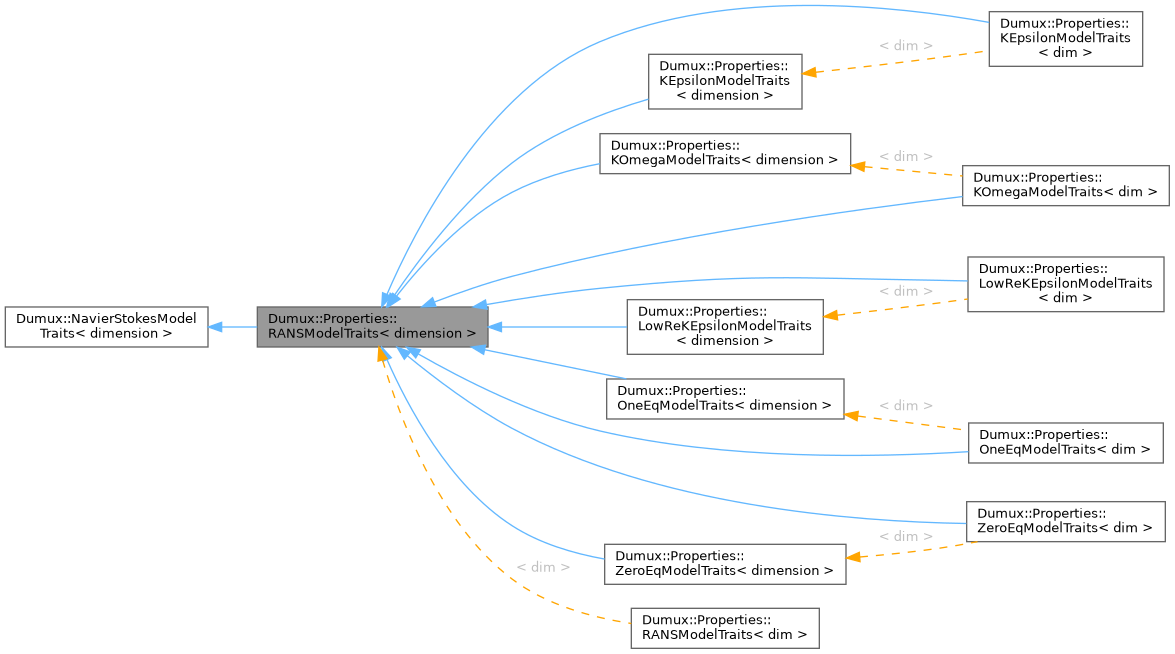

Inheritance diagram for Dumux::Properties::RANSModelTraits< dimension >:

Description

template<int dimension>
struct Dumux::Properties::RANSModelTraits< dimension >

Traits for the Reynolds-averaged Navier-Stokes model.

Template Parameters

dimension

The dimension of the problem

Public Types
using	Indices = NavierStokesIndices<dim()>
	the indices

Static Public Member Functions
static constexpr bool	usesTurbulenceModel ()
	The model does include a turbulence model.
static constexpr int	dim ()
	The dimension of the model.
static constexpr int	numEq ()
static constexpr int	numFluidPhases ()
	The number of phases is 1.
static constexpr int	numFluidComponents ()
	The number of components is 1.
static constexpr bool	enableAdvection ()
	Enable advection.
static constexpr bool	enableMolecularDiffusion ()
	The one-phase model has no molecular diffusion.
static constexpr bool	enableEnergyBalance ()
	The model is isothermal.
static constexpr auto	turbulenceModel ()
	return the type of turbulence model used

Member Typedef Documentation

Indices

template<int dimension>

using Dumux::NavierStokesModelTraits< dimension >::Indices = NavierStokesIndices<dim()>

inherited

the indices

Member Function Documentation

dim()

template<int dimension>

constexpr int Dumux::NavierStokesModelTraits< dimension >::dim ( )

inlinestaticconstexprinherited

The dimension of the model.

enableAdvection()

template<int dimension>

constexpr bool Dumux::NavierStokesModelTraits< dimension >::enableAdvection ( )

inlinestaticconstexprinherited

Enable advection.

enableEnergyBalance()

template<int dimension>

constexpr bool Dumux::NavierStokesModelTraits< dimension >::enableEnergyBalance ( )

inlinestaticconstexprinherited

The model is isothermal.

enableMolecularDiffusion()

template<int dimension>

constexpr bool Dumux::NavierStokesModelTraits< dimension >::enableMolecularDiffusion ( )

inlinestaticconstexprinherited

The one-phase model has no molecular diffusion.

numEq()

template<int dimension>

constexpr int Dumux::NavierStokesModelTraits< dimension >::numEq ( )

inlinestaticconstexprinherited

There are as many momentum balance equations as dimensions and one mass balance equation.

numFluidComponents()

template<int dimension>

constexpr int Dumux::NavierStokesModelTraits< dimension >::numFluidComponents ( )

inlinestaticconstexprinherited

The number of components is 1.

numFluidPhases()

template<int dimension>

constexpr int Dumux::NavierStokesModelTraits< dimension >::numFluidPhases ( )

inlinestaticconstexprinherited

The number of phases is 1.

turbulenceModel()

template<int dimension>

constexpr auto Dumux::NavierStokesModelTraits< dimension >::turbulenceModel ( )

inlinestaticconstexprinherited

return the type of turbulence model used

usesTurbulenceModel()

template<int dimension>

constexpr bool Dumux::Properties::RANSModelTraits< dimension >::usesTurbulenceModel ( )

inlinestaticconstexpr

The model does include a turbulence model.

---

The documentation for this struct was generated from the following file:

• freeflow/rans/model.hh
