Dumux::Properties::ZeroEqNCModelTraits< dimension, nComp, useM, replaceCompEqIdx > Struct Template Reference

Traits for the Reynolds-averaged Navier-Stokes 0-Eq. model. More...

#include <dumux/freeflow/compositional/zeroeqncmodel.hh>

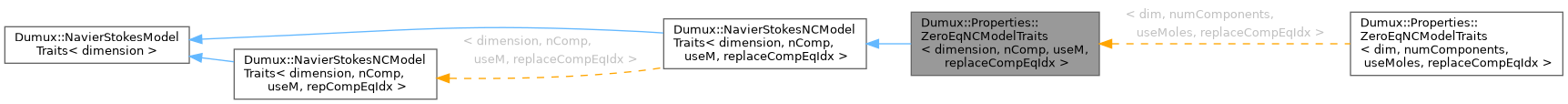

Inheritance diagram for Dumux::Properties::ZeroEqNCModelTraits< dimension, nComp, useM, replaceCompEqIdx >:

Description

template<int dimension, int nComp, bool useM, int replaceCompEqIdx>
struct Dumux::Properties::ZeroEqNCModelTraits< dimension, nComp, useM, replaceCompEqIdx >

Traits for the Reynolds-averaged Navier-Stokes 0-Eq. model.

Public Types
using	Indices
	the indices

Static Public Member Functions
static constexpr bool	usesTurbulenceModel ()
	The model does include a turbulence model.
static constexpr auto	turbulenceModel ()
	return the type of turbulence model used
static constexpr int	numEq ()
static constexpr int	numFluidComponents ()
	The number of components.
static constexpr bool	useMoles ()
	Use moles or not.
static constexpr bool	enableMolecularDiffusion ()
	The one-phase model has no molecular diffusion.
static constexpr int	replaceCompEqIdx ()
	Index of of a component balance eq. to be replaced by a total mass/mole balance.
static constexpr int	dim ()
	The dimension of the model.
static constexpr int	numFluidPhases ()
	The number of phases is 1.
static constexpr bool	enableAdvection ()
	Enable advection.
static constexpr bool	enableEnergyBalance ()
	The model is isothermal.

Member Typedef Documentation

Indices

using Dumux::NavierStokesNCModelTraits< dimension, nComp, useM, repCompEqIdx >::Indices

inherited

the indices

Member Function Documentation

dim()

constexpr int Dumux::NavierStokesModelTraits< dimension >::dim ( )

inlinestaticconstexprinherited

The dimension of the model.

enableAdvection()

constexpr bool Dumux::NavierStokesModelTraits< dimension >::enableAdvection ( )

inlinestaticconstexprinherited

Enable advection.

enableEnergyBalance()

constexpr bool Dumux::NavierStokesModelTraits< dimension >::enableEnergyBalance ( )

inlinestaticconstexprinherited

The model is isothermal.

enableMolecularDiffusion()

constexpr bool Dumux::NavierStokesNCModelTraits< dimension, nComp, useM, repCompEqIdx >::enableMolecularDiffusion ( )

inlinestaticconstexprinherited

The one-phase model has no molecular diffusion.

numEq()

constexpr int Dumux::NavierStokesNCModelTraits< dimension, nComp, useM, repCompEqIdx >::numEq ( )

inlinestaticconstexprinherited

There are as many momentum balance equations as dimensions and as many balance equations as components.

numFluidComponents()

constexpr int Dumux::NavierStokesNCModelTraits< dimension, nComp, useM, repCompEqIdx >::numFluidComponents ( )

inlinestaticconstexprinherited

The number of components.

numFluidPhases()

constexpr int Dumux::NavierStokesModelTraits< dimension >::numFluidPhases ( )

inlinestaticconstexprinherited

The number of phases is 1.

replaceCompEqIdx()

constexpr int Dumux::NavierStokesNCModelTraits< dimension, nComp, useM, repCompEqIdx >::replaceCompEqIdx ( )

inlinestaticconstexprinherited

Index of of a component balance eq. to be replaced by a total mass/mole balance.

turbulenceModel()

template<int dimension, int nComp, bool useM, int replaceCompEqIdx>

constexpr auto Dumux::Properties::ZeroEqNCModelTraits< dimension, nComp, useM, replaceCompEqIdx >::turbulenceModel ( )

inlinestaticconstexpr

return the type of turbulence model used

useMoles()

constexpr bool Dumux::NavierStokesNCModelTraits< dimension, nComp, useM, repCompEqIdx >::useMoles ( )

inlinestaticconstexprinherited

Use moles or not.

usesTurbulenceModel()

template<int dimension, int nComp, bool useM, int replaceCompEqIdx>

constexpr bool Dumux::Properties::ZeroEqNCModelTraits< dimension, nComp, useM, replaceCompEqIdx >::usesTurbulenceModel ( )

inlinestaticconstexpr

The model does include a turbulence model.

---

The documentation for this struct was generated from the following file:

• zeroeqncmodel.hh
