Dumux::MatrixFractureSpatialParams< GridGeometry, Scalar > Class Template Reference

Definition of the spatial parameters for the matrix and fracture problem. More...

#include <test/multidomain/embedded/2d3d/1p_1p/spatialparams.hh>

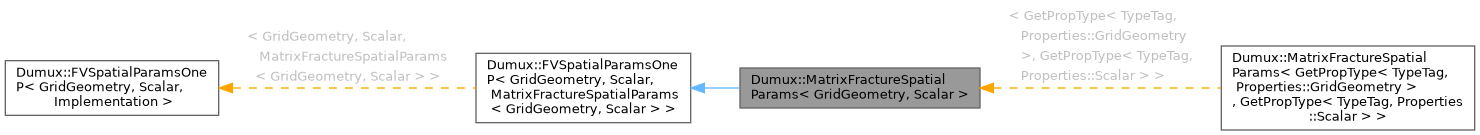

Inheritance diagram for Dumux::MatrixFractureSpatialParams< GridGeometry, Scalar >:

Description

template<class GridGeometry, class Scalar>
class Dumux::MatrixFractureSpatialParams< GridGeometry, Scalar >

Definition of the spatial parameters for the matrix and fracture problem.

Public Types
using	PermeabilityType = Scalar

Public Member Functions
	MatrixFractureSpatialParams (std::shared_ptr< const GridGeometry > gridGeometry, const std::string &paramGroup="")
template<class ElementSolution>
PermeabilityType	permeability (const Element &element, const SubControlVolume &scv, const ElementSolution &elemSol) const
	Defines the intrinsic permeability \(\mathrm{[m^2]}\).
template<class ElementSolution>
Scalar	porosity (const Element &element, const SubControlVolume &scv, const ElementSolution &elemSol) const
	Defines the porosity \(\mathrm{[-]}\).
const GlobalPosition &	gravity (const GlobalPosition &pos) const
	Returns the acceleration due to gravity \(\mathrm{[m/s^2]}\).
Scalar	harmonicMean (const Scalar T1, const Scalar T2, const GlobalPosition &normal) const
	Harmonic average of a discontinuous scalar field at discontinuity interface (for compatibility reasons with the function below).
Scalar	inertVolumeFraction (const Element &element, const SubControlVolume &scv, const ElementSolution &elemSol, int compIdx) const
	Function for defining the solid volume fraction. That is possibly solution dependent.
Scalar	beaversJosephCoeffAtPos (const GlobalPosition &globalPos) const
	Function for defining the Beavers-Joseph coefficient for multidomain problems \(\mathrm{[-]}\).
Scalar	forchCoeff (const SubControlVolumeFace &scvf) const
	Apply the Forchheimer coefficient for inertial forces calculation.
const GridGeometry &	fvGridGeometry () const
	The finite volume grid geometry.
const GridGeometry &	gridGeometry () const
	The finite volume grid geometry.

Static Public Member Functions
static constexpr bool	evaluatePermeabilityAtScvfIP ()
	If the permeability should be evaluated directly at the scvf integration point (for convergence tests with analytical and continuous perm functions) or is evaluated at the scvs (for permeability fields with discontinuities) -> default.

Protected Member Functions
MatrixFractureSpatialParams< GridGeometry, Scalar > &	asImp_ ()

Member Typedef Documentation

PermeabilityType

template<class GridGeometry, class Scalar>

using Dumux::MatrixFractureSpatialParams< GridGeometry, Scalar >::PermeabilityType = Scalar

Constructor & Destructor Documentation

MatrixFractureSpatialParams()

template<class GridGeometry, class Scalar>

Dumux::MatrixFractureSpatialParams< GridGeometry, Scalar >::MatrixFractureSpatialParams ( std::shared_ptr< const GridGeometry > gridGeometry, const std::string & paramGroup = "" )

inline

Member Function Documentation

asImp_()

MatrixFractureSpatialParams< GridGeometry, Scalar > & Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::asImp_ ( )

inlineprotectedinherited

beaversJosephCoeffAtPos()

Scalar Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::beaversJosephCoeffAtPos ( const GlobalPosition & globalPos ) const

inlineinherited

Function for defining the Beavers-Joseph coefficient for multidomain problems \(\mathrm{[-]}\).

Returns

Beavers-Joseph coefficient \(\mathrm{[-]}\)

Parameters

globalPos

The global position

evaluatePermeabilityAtScvfIP()

constexpr bool Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::evaluatePermeabilityAtScvfIP ( )

inlinestaticconstexprinherited

If the permeability should be evaluated directly at the scvf integration point (for convergence tests with analytical and continuous perm functions) or is evaluated at the scvs (for permeability fields with discontinuities) -> default.

forchCoeff()

Scalar Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::forchCoeff ( const SubControlVolumeFace & scvf ) const

inlineinherited

Apply the Forchheimer coefficient for inertial forces calculation.

Parameters

scvf	The sub-control volume face where the intrinsic velocity ought to be calculated.

fvGridGeometry()

const GridGeometry & Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::fvGridGeometry ( ) const

inlineinherited

The finite volume grid geometry.

gravity()

const GlobalPosition & Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::gravity ( const GlobalPosition & pos ) const

inlineinherited

Returns the acceleration due to gravity \(\mathrm{[m/s^2]}\).

The default behaviour is a constant gravity vector; if the Problem.EnableGravity parameter is true, \(\boldsymbol{g} = ( 0,\dots,\ -9.81)^T \), else \(\boldsymbol{g} = ( 0,\dots, 0)^T \).

Parameters

pos	the spatial position at which to evaulate the gravity vector

gridGeometry()

const GridGeometry & Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::gridGeometry ( ) const

inlineinherited

The finite volume grid geometry.

harmonicMean()

Scalar Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::harmonicMean ( const Scalar T1, const Scalar T2, const GlobalPosition & normal ) const

inlineinherited

Harmonic average of a discontinuous scalar field at discontinuity interface (for compatibility reasons with the function below).

Returns

the averaged scalar

Parameters

T1	first scalar parameter
T2	second scalar parameter
normal	The unit normal vector of the interface

inertVolumeFraction()

Scalar Dumux::FVSpatialParamsOneP< GridGeometry, Scalar, MatrixFractureSpatialParams< GridGeometry, Scalar > >::inertVolumeFraction ( const Element & element, const SubControlVolume & scv, const ElementSolution & elemSol, int compIdx ) const

inlineinherited

Function for defining the solid volume fraction. That is possibly solution dependent.

Parameters

element	The current element
scv	The sub-control volume inside the element.
elemSol	The solution at the dofs connected to the element.
compIdx	The solid component index

Returns

the volume fraction of the inert solid component with index compIdx

Note

this overload is enable if there is only one inert solid component and the user didn't choose to implement a inertVolumeFractionAtPos overload. It then forwards to the simpler porosity interface. With more than one solid components or active solid components (i.e. dissolution) please overload the more general inertVolumeFraction/inertVolumeFractionAtPos interface.

permeability()

template<class GridGeometry, class Scalar>

template<class ElementSolution>

PermeabilityType Dumux::MatrixFractureSpatialParams< GridGeometry, Scalar >::permeability ( const Element & element, const SubControlVolume & scv, const ElementSolution & elemSol ) const

inline

Defines the intrinsic permeability \(\mathrm{[m^2]}\).

Parameters

element	The element
scv	The sub control volume
elemSol	The element solution vector

porosity()

template<class GridGeometry, class Scalar>

template<class ElementSolution>

Scalar Dumux::MatrixFractureSpatialParams< GridGeometry, Scalar >::porosity ( const Element & element, const SubControlVolume & scv, const ElementSolution & elemSol ) const

inline

Defines the porosity \(\mathrm{[-]}\).

Parameters

element	The current finite element
scv	The sub control volume
elemSol	The current element solution vector

---

The documentation for this class was generated from the following file:

• multidomain/embedded/2d3d/1p_1p/spatialparams.hh
