Dumux::BoxMaterialInterfaceParams< SpatialParams > Class Template Reference

Class that determines the material with the lowest capillary pressure (under fully water-saturated conditions) around the nodes of a grid. More...

#include <dumux/porousmediumflow/2p/boxmaterialinterfaceparams.hh>

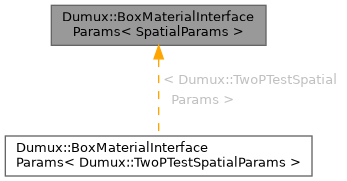

Inheritance diagram for Dumux::BoxMaterialInterfaceParams< SpatialParams >:

Description

template<class SpatialParams>
class Dumux::BoxMaterialInterfaceParams< SpatialParams >

Class that determines the material with the lowest capillary pressure (under fully water-saturated conditions) around the nodes of a grid.

These parameters are then associated with the global degree of freedom. On the basis of these parameters, the saturations in the remaining sub-control volumes connected to the vertex can be reconstructed.

Public Types
using	MaterialLawParams = typename SpatialParams::MaterialLaw::Params

Public Member Functions
template<class GridGeometry, class SolutionVector>
void	update (const GridGeometry &gridGeometry, const SpatialParams &spatialParams, const SolutionVector &x)
	Updates the scv -> dofparameter map.
template<class Scv>
bool	isOnMaterialInterface (const Scv &scv) const
	Returns if this scv is connected to a material interface.
template<class Scv>
const MaterialLawParams &	getDofParams (const Scv &scv) const
	Returns the material parameters associated with the dof.

Member Typedef Documentation

MaterialLawParams

template<class SpatialParams>

using Dumux::BoxMaterialInterfaceParams< SpatialParams >::MaterialLawParams = typename SpatialParams::MaterialLaw::Params

Member Function Documentation

getDofParams()

template<class SpatialParams>

template<class Scv>

const MaterialLawParams & Dumux::BoxMaterialInterfaceParams< SpatialParams >::getDofParams ( const Scv & scv ) const

inline

Returns the material parameters associated with the dof.

isOnMaterialInterface()

template<class SpatialParams>

template<class Scv>

bool Dumux::BoxMaterialInterfaceParams< SpatialParams >::isOnMaterialInterface ( const Scv & scv ) const

inline

Returns if this scv is connected to a material interface.

update()

template<class SpatialParams>

template<class GridGeometry, class SolutionVector>

void Dumux::BoxMaterialInterfaceParams< SpatialParams >::update ( const GridGeometry & gridGeometry, const SpatialParams & spatialParams, const SolutionVector & x )

inline

Updates the scv -> dofparameter map.

Parameters

gridGeometry	The finite volume grid geometry
spatialParams	Class encapsulating the spatial parameters
x	The current state of the solution vector

---

The documentation for this class was generated from the following file:

• boxmaterialinterfaceparams.hh
