Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector > Class Template Reference

Velocity output for staggered free-flow models. More...

#include <dumux/discretization/staggered/freeflow/velocityoutput.hh>

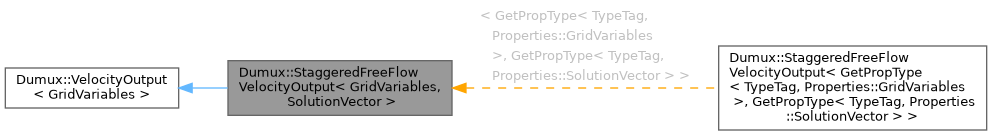

Inheritance diagram for Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >:

Description

template<class GridVariables, class SolutionVector>
class Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >

Velocity output for staggered free-flow models.

Public Types
using	VelocityVector = typename ParentType::VelocityVector

Public Member Functions
	StaggeredFreeFlowVelocityOutput (const GridVariables &gridVariables, const SolutionVector &sol)
	Constructor initializes the static data with the initial solution.
bool	enableOutput () const override
	Returns whether to enable the velocity output or not.
std::string	phaseName (int phaseIdx) const override
	returns the phase name of a given phase index
int	numFluidPhases () const override
	returns the number of phases
void	calculateVelocity (VelocityVector &velocity, const ElementVolumeVariables &elemVolVars, const FVElementGeometry &fvGeometry, const Element &element, int phaseIdx) const override
void	calculateVelocity (VelocityVector &velocity, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const ElementFluxVarsCache &elemFluxVarsCache, int phaseIdx) const override
virtual void	calculateVelocity (VelocityVector &velocity, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const ElementFluxVarsCache &elemFluxVarsCache, int phaseIdx) const
virtual void	calculateVelocity (VelocityVector &velocity, const ElementVolumeVariables &elemVolVars, const FVElementGeometry &fvGeometry, const Element &element, int phaseIdx) const

Member Typedef Documentation

VelocityVector

template<class GridVariables, class SolutionVector>

using Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >::VelocityVector = typename ParentType::VelocityVector

Constructor & Destructor Documentation

StaggeredFreeFlowVelocityOutput()

template<class GridVariables, class SolutionVector>

Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >::StaggeredFreeFlowVelocityOutput ( const GridVariables & gridVariables, const SolutionVector & sol )

inline

Constructor initializes the static data with the initial solution.

Parameters

gridVariables	The gridVariables
sol	The solution vector

Member Function Documentation

calculateVelocity() [1/4]

template<class GridVariables, class SolutionVector>

void Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >::calculateVelocity ( VelocityVector & velocity, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const ElementFluxVarsCache & elemFluxVarsCache, int phaseIdx ) const

inlineoverride

Calculate the velocities for the scvs in the element We assume the local containers to be bound to the complete stencil

calculateVelocity() [2/4]

template<class GridVariables, class SolutionVector>

void Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >::calculateVelocity ( VelocityVector & velocity, const ElementVolumeVariables & elemVolVars, const FVElementGeometry & fvGeometry, const Element & element, int phaseIdx ) const

inlineoverride

Calculate the velocities for the scvs in the element We assume the local containers to be bound to the complete stencil

calculateVelocity() [3/4]

template<class GridVariables>

virtual void Dumux::VelocityOutput< GridVariables >::calculateVelocity ( VelocityVector & velocity, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const ElementFluxVarsCache & elemFluxVarsCache, int phaseIdx ) const

inlinevirtualinherited

Calculate the velocities for the scvs in the element We assume the local containers to be bound to the complete stencil

calculateVelocity() [4/4]

template<class GridVariables>

virtual void Dumux::VelocityOutput< GridVariables >::calculateVelocity ( VelocityVector & velocity, const ElementVolumeVariables & elemVolVars, const FVElementGeometry & fvGeometry, const Element & element, int phaseIdx ) const

inlinevirtualinherited

Calculate the velocities for the scvs in the element We assume the local containers to be bound to the complete stencil

enableOutput()

template<class GridVariables, class SolutionVector>

bool Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >::enableOutput ( ) const

inlineoverridevirtual

Returns whether to enable the velocity output or not.

Reimplemented from Dumux::VelocityOutput< GridVariables >.

numFluidPhases()

template<class GridVariables, class SolutionVector>

int Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >::numFluidPhases ( ) const

inlineoverridevirtual

returns the number of phases

Reimplemented from Dumux::VelocityOutput< GridVariables >.

phaseName()

template<class GridVariables, class SolutionVector>

std::string Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >::phaseName ( int phaseIdx ) const

inlineoverridevirtual

returns the phase name of a given phase index

Reimplemented from Dumux::VelocityOutput< GridVariables >.

---

The documentation for this class was generated from the following file:

• discretization/staggered/freeflow/velocityoutput.hh
