Dumux::GridAdapt< TypeTag, adaptive > Class Template Reference

Standard Module for h-adaptive simulations. More...

#include <dumux/porousmediumflow/sequential/gridadapt.hh>

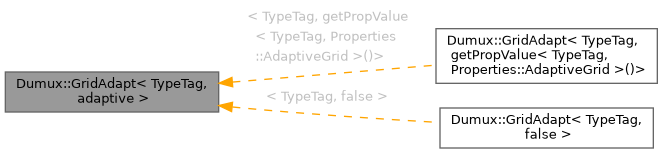

Inheritance diagram for Dumux::GridAdapt< TypeTag, adaptive >:

Description

template<class TypeTag, bool adaptive>
class Dumux::GridAdapt< TypeTag, adaptive >

Standard Module for h-adaptive simulations.

This class is created by the problem class with the template parameters <TypeTag, true> and provides basic functionality for adaptive methods:

A standard implementation adaptGrid() will prepare everything to calculate the next pressure field on the new grid.

Public Member Functions
	GridAdapt (Problem &problem)
void	init ()
	Initalization method of the h-adaptive module.
void	adaptGrid ()
	Standard method to adapt the grid.
template<class Indicator>
void	adaptGrid (Indicator &indicator)
	Method to adapt the grid with individual indicator vector.
template<class Indicator>
void	markElements (Indicator &indicator)
bool	wasAdapted ()
	Returns true if grid cells have been marked for adaptation.
void	setLevels (int levMin, int levMax)
int	getMaxLevel () const
	Returns maximum refinement level.
int	getMinLevel () const
	Returns minimum refinement level.
AdaptionIndicator &	adaptionIndicator ()
AdaptionIndicator &	adaptionIndicator () const

Constructor & Destructor Documentation

GridAdapt()

template<class TypeTag, bool adaptive>

Dumux::GridAdapt< TypeTag, adaptive >::GridAdapt ( Problem & problem )

inline

Constructor for h-adaptive simulations (adaptive grids)

Parameters

problem

The problem

Member Function Documentation

adaptGrid() [1/2]

template<class TypeTag, bool adaptive>

void Dumux::GridAdapt< TypeTag, adaptive >::adaptGrid ( )

inline

Standard method to adapt the grid.

This method is called from IMPETProblem::preTimeStep() if adaptive grids are used in the simulation. It uses the standard indicator (selected by the property AdaptionIndicator) and forwards to with it to the ultimate method adaptGrid(indicator), which uses a standard procedure for adaptivity: 1) Determine the refinement indicator 2) Mark the elements 3) Store primary variables in a map 4) Adapt the grid, adapt variables sizes, update mappers 5) Reconstruct primary variables, regain secondary variables

adaptGrid() [2/2]

template<class TypeTag, bool adaptive>

template<class Indicator>

void Dumux::GridAdapt< TypeTag, adaptive >::adaptGrid ( Indicator & indicator )

inline

Method to adapt the grid with individual indicator vector.

Parameters

indicator

The refinement indicator that is applied

This method is called by an user-defined preTimeStep() of the applied problem and takes a given vector with indicator values.

It uses a standard procedure for adaptivity: 1) Determine the refinement indicator 2) Mark the elements 3) Store primary variables in a map 4) Adapt the grid, adapt variables sizes, update mappers 5) Reconstruct primary variables, regain secondary variables

adaptionIndicator() [1/2]

template<class TypeTag, bool adaptive>

AdaptionIndicator & Dumux::GridAdapt< TypeTag, adaptive >::adaptionIndicator ( )

inline

adaptionIndicator() [2/2]

template<class TypeTag, bool adaptive>

AdaptionIndicator & Dumux::GridAdapt< TypeTag, adaptive >::adaptionIndicator ( ) const

inline

getMaxLevel()

template<class TypeTag, bool adaptive>

int Dumux::GridAdapt< TypeTag, adaptive >::getMaxLevel ( ) const

inline

Returns maximum refinement level.

The value is the assign maximum possible level, not the actual maximum level of the grid.

Returns

levelMax_ maximum level for refinement

getMinLevel()

template<class TypeTag, bool adaptive>

int Dumux::GridAdapt< TypeTag, adaptive >::getMinLevel ( ) const

inline

Returns minimum refinement level.

The value is the assign minimum possible level, not the actual minimum level of the grid.

Returns

levelMin_ minimum level for coarsening

init()

template<class TypeTag, bool adaptive>

void Dumux::GridAdapt< TypeTag, adaptive >::init ( )

inline

Initalization method of the h-adaptive module.

Prepares the grid for simulation after the initialization of the problem. The applied indicator is selectable via the property AdaptionInitializationIndicator

markElements()

template<class TypeTag, bool adaptive>

template<class Indicator>

void Dumux::GridAdapt< TypeTag, adaptive >::markElements ( Indicator & indicator )

inline

Mark Elements for grid refinement according to applied Indicator

Returns

Total ammount of marked cells

setLevels()

template<class TypeTag, bool adaptive>

void Dumux::GridAdapt< TypeTag, adaptive >::setLevels ( int levMin, int levMax )

inline

Sets minimum and maximum refinement levels

Parameters

levMin	minimum level for coarsening
levMax	maximum level for refinement

wasAdapted()

template<class TypeTag, bool adaptive>

bool Dumux::GridAdapt< TypeTag, adaptive >::wasAdapted ( )

inline

Returns true if grid cells have been marked for adaptation.

---

The documentation for this class was generated from the following file:

• gridadapt.hh
