Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset > Struct Template Reference

The indices for the \(p_{global}-S_n\) formulation of the isothermal two-phase model. More...

#include <dumux/porousmediumflow/2p/sequential/indices.hh>

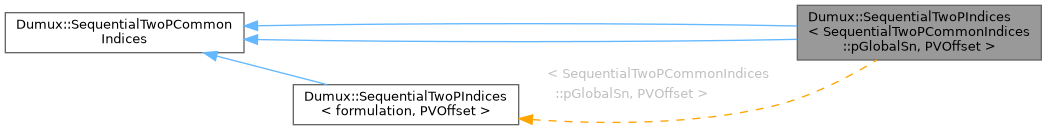

Inheritance diagram for Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >:

Description

template<int PVOffset>
struct Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >

The indices for the \(p_{global}-S_n\) formulation of the isothermal two-phase model.

Template Parameters

PVOffset

The first index in a primary variable vector.

Static Public Attributes
static const int	pressureIdx = PVOffset + 0
	index for the primary pressure variable in a solution vector
static const int	saturationIdx = PVOffset + 1
	index for the primary saturation variable in a solution vector
static const int	pGlobalIdx = PVOffset + 0
	index of the global pressure
static const int	snIdx = PVOffset + 1
	index of the nonwetting phase saturation
static const int	pressureEqIdx = PVOffset + 0
	index of the pressure equation (total mass balance)
static const int	satEqIdx = PVOffset + 1
	index of the continuity equation of the non-wetting phase (saturation equation)
static const int	transportEqIdx = satEqIdx
	index of the saturation transport equation
static const int	pwIdx
	index of the wetting phase pressure
static const int	contiWEqIdx
	index of the continuity equation of the wetting phase
static const int	contiNEqIdx
	index of the continuity equation of the non-wetting phase
static const int	pwsn
	pw and sn as primary variables
static const int	pnsw
	pn and sw as primary variables
static const int	pwsw
	pw and sw as primary variables
static const int	pnsn
	pn and sn as primary variables
static const int	pGlobalSw
	pGlobal and sw as primary variables
static const int	pGlobalSn
	pGlobal and sn as primary variables
static const int	wPhaseIdx
	index of the wetting phase in a phase vector
static const int	nPhaseIdx
	index of the non-wetting phase in a phase vector
static const int	totalPhaseIdx
	index of the total phase (wetting + nonwetting)
static const int	saturationW
	Indicates wetting phase saturation.
static const int	saturationN
	Indicates non-wetting phase saturation.
static const int	saturationNw
	Indicates non-wetting phase saturation.
static const int	pressureW
	Indicates wetting phase pressure.
static const int	pressureN
	Indicates non-wetting phase pressure.
static const int	pressureNw
	Indicates non-wetting phase pressure.
static const int	pressureGlobal
	Indicates global-pressure.
static const int	velocityW
	Indicates wetting phase velocity.
static const int	velocityN
	Indicates non-wetting phase velocity.
static const int	velocityNw
	Indicates non-wetting phase velocity.
static const int	velocityTotal
	Indicates total velocity.

Member Data Documentation

contiNEqIdx

const int Dumux::SequentialTwoPIndices< formulation, PVOffset >::contiNEqIdx

static

index of the continuity equation of the non-wetting phase

contiWEqIdx

const int Dumux::SequentialTwoPIndices< formulation, PVOffset >::contiWEqIdx

static

index of the continuity equation of the wetting phase

nPhaseIdx

const int Dumux::SequentialTwoPCommonIndices::nPhaseIdx

static

index of the non-wetting phase in a phase vector

pGlobalIdx

template<int PVOffset>

const int Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >::pGlobalIdx = PVOffset + 0

static

index of the global pressure

pGlobalSn

const int Dumux::SequentialTwoPCommonIndices::pGlobalSn

static

pGlobal and sn as primary variables

pGlobalSw

const int Dumux::SequentialTwoPCommonIndices::pGlobalSw

static

pGlobal and sw as primary variables

pnsn

const int Dumux::SequentialTwoPCommonIndices::pnsn

static

pn and sn as primary variables

pnsw

const int Dumux::SequentialTwoPCommonIndices::pnsw

static

pn and sw as primary variables

pressureEqIdx

template<int PVOffset>

const int Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >::pressureEqIdx = PVOffset + 0

static

index of the pressure equation (total mass balance)

pressureGlobal

const int Dumux::SequentialTwoPCommonIndices::pressureGlobal

static

Indicates global-pressure.

pressureIdx

template<int PVOffset>

const int Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >::pressureIdx = PVOffset + 0

static

index for the primary pressure variable in a solution vector

pressureN

const int Dumux::SequentialTwoPCommonIndices::pressureN

static

Indicates non-wetting phase pressure.

pressureNw

const int Dumux::SequentialTwoPCommonIndices::pressureNw

static

Indicates non-wetting phase pressure.

pressureW

const int Dumux::SequentialTwoPCommonIndices::pressureW

static

Indicates wetting phase pressure.

pwIdx

const int Dumux::SequentialTwoPIndices< formulation, PVOffset >::pwIdx

static

index of the wetting phase pressure

pwsn

const int Dumux::SequentialTwoPCommonIndices::pwsn

static

pw and sn as primary variables

pwsw

const int Dumux::SequentialTwoPCommonIndices::pwsw

static

pw and sw as primary variables

satEqIdx

template<int PVOffset>

const int Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >::satEqIdx = PVOffset + 1

static

index of the continuity equation of the non-wetting phase (saturation equation)

saturationIdx

template<int PVOffset>

const int Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >::saturationIdx = PVOffset + 1

static

index for the primary saturation variable in a solution vector

saturationN

const int Dumux::SequentialTwoPCommonIndices::saturationN

static

Indicates non-wetting phase saturation.

saturationNw

const int Dumux::SequentialTwoPCommonIndices::saturationNw

static

Indicates non-wetting phase saturation.

saturationW

const int Dumux::SequentialTwoPCommonIndices::saturationW

static

Indicates wetting phase saturation.

snIdx

template<int PVOffset>

const int Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >::snIdx = PVOffset + 1

static

index of the nonwetting phase saturation

totalPhaseIdx

const int Dumux::SequentialTwoPCommonIndices::totalPhaseIdx

static

index of the total phase (wetting + nonwetting)

transportEqIdx

template<int PVOffset>

const int Dumux::SequentialTwoPIndices< SequentialTwoPCommonIndices::pGlobalSn, PVOffset >::transportEqIdx = satEqIdx

static

index of the saturation transport equation

velocityN

const int Dumux::SequentialTwoPCommonIndices::velocityN

static

Indicates non-wetting phase velocity.

velocityNw

const int Dumux::SequentialTwoPCommonIndices::velocityNw

static

Indicates non-wetting phase velocity.

velocityTotal

const int Dumux::SequentialTwoPCommonIndices::velocityTotal

static

Indicates total velocity.

velocityW

const int Dumux::SequentialTwoPCommonIndices::velocityW

static

Indicates wetting phase velocity.

wPhaseIdx

const int Dumux::SequentialTwoPCommonIndices::wPhaseIdx

static

index of the wetting phase in a phase vector

---

The documentation for this struct was generated from the following file:

• porousmediumflow/2p/sequential/indices.hh
