Specialization for the box scheme with the interface solver enabled. More...

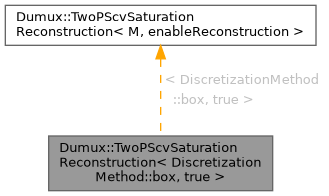

Inheritance diagram for Dumux::TwoPScvSaturationReconstruction< DiscretizationMethod::box, true >:

Description

Specialization for the box scheme with the interface solver enabled.

Static Public Member Functions
template<class SpatialParams, class Element, class Scv, class ElemSol>
static ElemSol::PrimaryVariables::value_type	reconstructSn (const SpatialParams &spatialParams, const Element &element, const Scv &scv, const ElemSol &elemSol, typename ElemSol::PrimaryVariables::value_type Sn)
	Compute the non-wetting phase saturation in an scv.

Member Function Documentation

template<class SpatialParams, class Element, class Scv, class ElemSol>

ElemSol::PrimaryVariables::value_type Dumux::TwoPScvSaturationReconstruction< DiscretizationMethod::box, true >::reconstructSn	(	const SpatialParams &	spatialParams,
		const Element &	element,
		const Scv &	scv,
		const ElemSol &	elemSol,
		typename ElemSol::PrimaryVariables::value_type	Sn )

inlinestatic

Compute the non-wetting phase saturation in an scv.

Parameters

spatialParams	Class encapsulating the spatial parameters
element	The finite element the scv is embedded in
scv	The sub-control volume for which the saturation is computed
elemSol	The solution at all dofs inside this element
Sn	The non-wetting phase saturation at the global dof

The documentation for this class was generated from the following file:
