Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true > Class Template Reference

Specialization of CCTpfaFacetCouplingDarcysLawImpl for dim<dimWorld. More...

#include <dumux/multidomain/facet/cellcentered/tpfa/darcyslaw.hh>

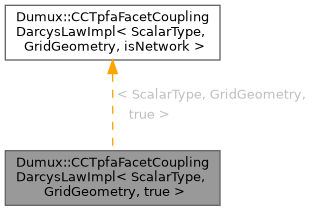

Inheritance diagram for Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >:

Description

template<class ScalarType, class GridGeometry>
class Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >

Specialization of CCTpfaFacetCouplingDarcysLawImpl for dim<dimWorld.

Public Types
using	Scalar = ScalarType
	state the scalar type of the law
using	Cache = CCTpfaFacetCouplingDarcysLawCache<ThisType, GridGeometry, true>
	state the type for the corresponding cache
using	TijContainer = typename Cache::AdvectionTransmissibilityContainer
	export the type used to store transmissibilities

Static Public Member Functions
template<class Problem, class ElementVolumeVariables, class ElementFluxVarsCache>
static Scalar	flux (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, int phaseIdx, const ElementFluxVarsCache &elemFluxVarsCache)
	Compute the advective flux.
template<class Problem, class ElementVolumeVariables>
static TijContainer	calculateTransmissibility (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf)

Static Public Attributes
static const DiscretizationMethod	discMethod = DiscretizationMethod::cctpfa
	state the discretization method this implementation belongs to

Member Typedef Documentation

Cache

template<class ScalarType, class GridGeometry>

using Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >::Cache = CCTpfaFacetCouplingDarcysLawCache<ThisType, GridGeometry, true>

state the type for the corresponding cache

Scalar

template<class ScalarType, class GridGeometry>

using Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >::Scalar = ScalarType

state the scalar type of the law

TijContainer

template<class ScalarType, class GridGeometry>

using Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >::TijContainer = typename Cache::AdvectionTransmissibilityContainer

export the type used to store transmissibilities

Member Function Documentation

calculateTransmissibility()

template<class ScalarType, class GridGeometry>

template<class Problem, class ElementVolumeVariables>

TijContainer Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >::calculateTransmissibility ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf )

inlinestatic

use the standard darcy's law and only compute one transmissibility

xi factor for the coupling conditions

flux()

template<class ScalarType, class GridGeometry>

template<class Problem, class ElementVolumeVariables, class ElementFluxVarsCache>

Scalar Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >::flux ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, int phaseIdx, const ElementFluxVarsCache & elemFluxVarsCache )

inlinestatic

Compute the advective flux.

Member Data Documentation

discMethod

template<class ScalarType, class GridGeometry>

const DiscretizationMethod Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, true >::discMethod = DiscretizationMethod::cctpfa

static

state the discretization method this implementation belongs to

---

The documentation for this class was generated from the following file:

• multidomain/facet/cellcentered/tpfa/darcyslaw.hh
