Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType > Class Template Reference

An integration point source class with an identifier to attach data and a quadrature weight and integration element. More...

#include <dumux/multidomain/embedded/integrationpointsource.hh>

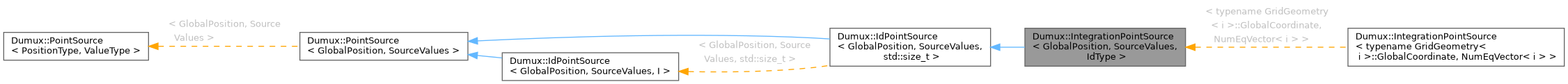

Inheritance diagram for Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >:

Description

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>
class Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >

An integration point source class with an identifier to attach data and a quadrature weight and integration element.

Public Types
using	IdType
	export the id type
using	GlobalPosition
	Export the position type.
using	Values
	Export the value type.

Public Member Functions
	IntegrationPointSource (GlobalPosition pos, SourceValues values, IdType id, Scalar qpweight, Scalar integrationElement, const std::vector< std::size_t > &elementIndices)
	Constructor for integration point sources.
	IntegrationPointSource (GlobalPosition pos, IdType id, Scalar qpweight, Scalar integrationElement, const std::vector< std::size_t > &elementIndices)
	Constructor for integration point sources, when there is no.
Scalar	quadratureWeight () const
Scalar	integrationElement () const
const std::vector< std::size_t > &	elementIndices () const
IntegrationPointSource &	operator= (const SourceValues &values)
	Convenience = operator overload modifying only the values.
IntegrationPointSource &	operator= (Scalar s)
	Convenience = operator overload modifying only the values.
IdType	id () const
	return the sources identifier
PointSource &	operator+= (Scalar s)
	Convenience += operator overload modifying only the values.
PointSource &	operator-= (Scalar s)
	Convenience -= operator overload modifying only the values.
PointSource &	operator*= (Scalar s)
	Convenience *= operator overload modifying only the values.
PointSource &	operator/= (Scalar s)
	Convenience /= operator overload modifying only the values.
Values	values () const
	return the source values
const GlobalPosition &	position () const
	return the source position
void	update (const Problem &problem, const typename FVElementGeometry::GridGeometry::GridView::template Codim< 0 >::Entity &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const typename FVElementGeometry::SubControlVolume &scv)
	an update function called before adding the value
void	setEmbeddings (std::size_t embeddings)
	set the number of embeddings for this point source
std::size_t	embeddings () const
	get the number of embeddings for this point source

Protected Attributes
Values	values_
	value of the point source for each equation

Member Typedef Documentation

GlobalPosition

using Dumux::PointSource< GlobalPosition, SourceValues >::GlobalPosition

inherited

Export the position type.

IdType

using Dumux::IdPointSource< GlobalPosition, SourceValues, std::size_t >::IdType

inherited

export the id type

Values

using Dumux::PointSource< GlobalPosition, SourceValues >::Values

inherited

Export the value type.

Constructor & Destructor Documentation

IntegrationPointSource() [1/2]

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>

Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >::IntegrationPointSource ( GlobalPosition pos, SourceValues values, IdType id, Scalar qpweight, Scalar integrationElement, const std::vector< std::size_t > & elementIndices )

inline

Constructor for integration point sources.

IntegrationPointSource() [2/2]

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>

Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >::IntegrationPointSource ( GlobalPosition pos, IdType id, Scalar qpweight, Scalar integrationElement, const std::vector< std::size_t > & elementIndices )

inline

Constructor for integration point sources, when there is no.

Member Function Documentation

elementIndices()

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>

const std::vector< std::size_t > & Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >::elementIndices ( ) const

inline

embeddings()

std::size_t Dumux::PointSource< GlobalPosition, SourceValues >::embeddings ( ) const

inlineinherited

get the number of embeddings for this point source

Note

A point source might be located on the intersection between several scvs. If so, there are point sources for every neighboring scv with the same position. embeddings returns the number of neighboring scvs. Example: If I want to inject 1kg/s at a location that is on the inner face of an scv the point source exists in both scvs. Both have a value of 1kg/s. We then divide the value by the number of embeddings to not inject 2kg/s but 1kg/s.

This division is done in the problem.scvPointSources() if this behaviour is not explicitly changed by e.g. overloading this function in the problem implementation.

id()

IdType Dumux::IdPointSource< GlobalPosition, SourceValues, std::size_t >::id ( ) const

inlineinherited

return the sources identifier

integrationElement()

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>

Scalar Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >::integrationElement ( ) const

inline

operator*=()

PointSource & Dumux::PointSource< GlobalPosition, SourceValues >::operator*= ( Scalar s )

inlineinherited

Convenience *= operator overload modifying only the values.

operator+=()

PointSource & Dumux::PointSource< GlobalPosition, SourceValues >::operator+= ( Scalar s )

inlineinherited

Convenience += operator overload modifying only the values.

operator-=()

PointSource & Dumux::PointSource< GlobalPosition, SourceValues >::operator-= ( Scalar s )

inlineinherited

Convenience -= operator overload modifying only the values.

operator/=()

PointSource & Dumux::PointSource< GlobalPosition, SourceValues >::operator/= ( Scalar s )

inlineinherited

Convenience /= operator overload modifying only the values.

operator=() [1/2]

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>

IntegrationPointSource & Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >::operator= ( const SourceValues & values )

inline

Convenience = operator overload modifying only the values.

operator=() [2/2]

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>

IntegrationPointSource & Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >::operator= ( Scalar s )

inline

Convenience = operator overload modifying only the values.

position()

const GlobalPosition & Dumux::PointSource< GlobalPosition, SourceValues >::position ( ) const

inlineinherited

return the source position

quadratureWeight()

template<class GlobalPosition, class SourceValues, typename IdType = std::size_t>

Scalar Dumux::IntegrationPointSource< GlobalPosition, SourceValues, IdType >::quadratureWeight ( ) const

inline

setEmbeddings()

void Dumux::PointSource< GlobalPosition, SourceValues >::setEmbeddings ( std::size_t embeddings )

inlineinherited

set the number of embeddings for this point source

update()

void Dumux::PointSource< GlobalPosition, SourceValues >::update ( const Problem & problem, const typename FVElementGeometry::GridGeometry::GridView::template Codim< 0 >::Entity & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const typename FVElementGeometry::SubControlVolume & scv )

inlineinherited

an update function called before adding the value

values()

Values Dumux::PointSource< GlobalPosition, SourceValues >::values ( ) const

inlineinherited

return the source values

Member Data Documentation

values_

Values Dumux::PointSource< GlobalPosition, SourceValues >::values_

protectedinherited

value of the point source for each equation

---

The documentation for this class was generated from the following file:

• integrationpointsource.hh
