Coupling manager for Stokes and Darcy domains with equal dimension. More...

#include <dumux/multidomain/boundary/stokesdarcy/couplingmanager.hh>

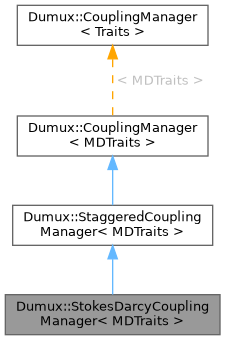

Inheritance diagram for Dumux::StokesDarcyCouplingManager< MDTraits >:

Description

template<class MDTraits>
class Dumux::StokesDarcyCouplingManager< MDTraits >

Coupling manager for Stokes and Darcy domains with equal dimension.

Public Types
using	CouplingData = StokesDarcyCouplingData<MDTraits, StokesDarcyCouplingManager<MDTraits>>
using	Traits = MDTraits
using	CouplingStencilType
	default type used for coupling element stencils

Public Member Functions
	StokesDarcyCouplingManager (std::shared_ptr< const GridGeometry< stokesIdx > > stokesFvGridGeometry, std::shared_ptr< const GridGeometry< darcyIdx > > darcyFvGridGeometry)
	Constructor.
void	init (std::shared_ptr< const Problem< stokesIdx > > stokesProblem, std::shared_ptr< const Problem< darcyIdx > > darcyProblem, const SolutionVector &curSol)
	Methods to be accessed by main.
void	update ()
	Update after the grid has changed.
void	updateSolution (const SolutionVector &curSol)
	Update the solution vector before assembly.
void	computeStencils ()
	Prepare the coupling stencils.
template<std::size_t i, class Assembler, std::enable_if_t<(i==stokesCellCenterIdx\|\|i==stokesFaceIdx), int > = 0>
void	bindCouplingContext (Dune::index_constant< i > domainI, const Element< stokesCellCenterIdx > &element, const Assembler &assembler) const
	prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Darcy information)
template<std::size_t i, std::enable_if_t<(i==stokesCellCenterIdx\|\|i==stokesFaceIdx), int > = 0>
void	bindCouplingContext (Dune::index_constant< i > domainI, const Element< stokesCellCenterIdx > &element) const
	prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Darcy information)
template<class Assembler>
void	bindCouplingContext (Dune::index_constant< darcyIdx > domainI, const Element< darcyIdx > &element, const Assembler &assembler) const
	prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Stokes information)
void	bindCouplingContext (Dune::index_constant< darcyIdx > domainI, const Element< darcyIdx > &element) const
	prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Stokes information)
template<class LocalAssemblerI>
void	updateCouplingContext (Dune::index_constant< darcyIdx > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< darcyIdx > domainJ, std::size_t dofIdxGlobalJ, const PrimaryVariables< darcyIdx > &priVarsJ, int pvIdxJ)
	Update the coupling context for the Darcy residual w.r.t. Darcy DOFs.
template<class LocalAssemblerI>
void	updateCouplingContext (Dune::index_constant< darcyIdx > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< stokesCellCenterIdx > domainJ, const std::size_t dofIdxGlobalJ, const PrimaryVariables< stokesCellCenterIdx > &priVars, int pvIdxJ)
	Update the coupling context for the Darcy residual w.r.t. the Stokes cell-center DOFs (DarcyToCC).
template<class LocalAssemblerI>
void	updateCouplingContext (Dune::index_constant< darcyIdx > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< stokesFaceIdx > domainJ, const std::size_t dofIdxGlobalJ, const PrimaryVariables< stokesFaceIdx > &priVars, int pvIdxJ)
	Update the coupling context for the Darcy residual w.r.t. the Stokes face DOFs (DarcyToFace).
template<std::size_t i, class LocalAssemblerI, std::enable_if_t<(i==stokesCellCenterIdx\|\|i==stokesFaceIdx), int > = 0>
void	updateCouplingContext (Dune::index_constant< i > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< darcyIdx > domainJ, const std::size_t dofIdxGlobalJ, const PrimaryVariables< darcyIdx > &priVars, int pvIdxJ)
	Update the coupling context for the Stokes cc residual w.r.t. the Darcy DOFs (FaceToDarcy).
const auto &	couplingData () const
	Access the coupling data.
const auto &	stokesCouplingContext (const Element< stokesIdx > &element, const SubControlVolumeFace< stokesIdx > &scvf) const
	Access the coupling context needed for the Stokes domain.
const auto &	darcyCouplingContext (const Element< darcyIdx > &element, const SubControlVolumeFace< darcyIdx > &scvf) const
	Access the coupling context needed for the Darcy domain.
const CouplingStencil &	couplingStencil (Dune::index_constant< stokesCellCenterIdx > domainI, const Element< stokesIdx > &element, Dune::index_constant< darcyIdx > domainJ) const
	The coupling stencils.
template<std::size_t i, std::size_t j>
const CouplingStencil &	couplingStencil (Dune::index_constant< i > domainI, const Element< i > &element, Dune::index_constant< j > domainJ) const
	The coupling stencil of domain I, i.e. which domain J DOFs the given domain I element's residual depends on.
const CouplingStencil &	couplingStencil (Dune::index_constant< darcyIdx > domainI, const Element< darcyIdx > &element, Dune::index_constant< stokesCellCenterIdx > domainJ) const
	The coupling stencil of domain I, i.e. which domain J dofs the given domain I element's residual depends on.
const CouplingStencil &	couplingStencil (Dune::index_constant< darcyIdx > domainI, const Element< darcyIdx > &element, Dune::index_constant< stokesFaceIdx > domainJ) const
	The coupling stencil of domain I, i.e. which domain J dofs the given domain I element's residual depends on.
template<std::size_t i, std::size_t j>
const CouplingStencil &	couplingStencil (Dune::index_constant< i > domainI, const SubControlVolumeFace< stokesIdx > &scvf, Dune::index_constant< j > domainJ) const
	The coupling stencil of domain I, i.e. which domain J DOFs the given domain I element's residual depends on.
const CouplingStencil &	couplingStencil (Dune::index_constant< stokesFaceIdx > domainI, const SubControlVolumeFace< stokesIdx > &scvf, Dune::index_constant< darcyIdx > domainJ) const
	The coupling stencil of a Stokes face w.r.t. Darcy DOFs.
template<class IdType>
const std::vector< std::size_t > &	getAdditionalDofDependencies (IdType id, std::size_t stokesElementIdx) const
	There are no additional dof dependencies.
template<class IdType>
const std::vector< std::size_t > &	getAdditionalDofDependenciesInverse (IdType id, std::size_t darcyElementIdx) const
	There are no additional dof dependencies.
bool	isCoupledEntity (Dune::index_constant< stokesIdx >, const SubControlVolumeFace< stokesFaceIdx > &scvf) const
	Returns whether a given free flow scvf is coupled to the other domain.
bool	isCoupledEntity (Dune::index_constant< darcyIdx >, const SubControlVolumeFace< darcyIdx > &scvf) const
	Returns whether a given free flow scvf is coupled to the other domain.
const CouplingStencil &	couplingStencil (Dune::index_constant< cellCenterIdx > domainI, const Element &elementI, Dune::index_constant< faceIdx > domainJ) const
	returns an iteratable container of all indices of degrees of freedom of domain j that couple with / influence the element residual of the given element of domain i
template<std::size_t i, std::size_t j>
const CouplingStencil	couplingStencil (Dune::index_constant< i > domainI, const SubControlVolumeFace &scvfI, Dune::index_constant< j > domainJ) const
	returns an iteratable container of all indices of degrees of freedom of domain j that couple with / influence the residual of the given subcontrolvolume face of domain i
const CouplingStencil &	couplingStencil (Dune::index_constant< faceIdx > domainI, const SubControlVolumeFace &scvfI, Dune::index_constant< cellCenterIdx > domainJ) const
	returns an iteratable container of all indices of degrees of freedom of domain j that couple with / influence the residual of the given subcontrolvolume face of domain i
template<std::size_t i, std::size_t j, class LocalAssemblerI, class PriVarsJ>
void	updateCouplingContext (Dune::index_constant< i > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< j > domainJ, const std::size_t dofIdxGlobalJ, const PriVarsJ &priVarsJ, int pvIdxJ)
	updates all data and variables that are necessary to evaluate the residual of the element of domain i this is called whenever one of the primary variables that the element residual depends on changes in domain j
template<class LocalAssemblerI, std::size_t j>
decltype(auto)	evalCouplingResidual (Dune::index_constant< cellCenterIdx > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< j > domainJ, std::size_t dofIdxGlobalJ) const
	Methods to be accessed by the assembly.
template<class LocalAssemblerI, std::size_t j>
decltype(auto)	evalCouplingResidual (Dune::index_constant< faceIdx > domainI, const SubControlVolumeFace &scvfI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< j > domainJ, std::size_t dofIdxGlobalJ) const
	Methods to be accessed by the assembly.
decltype(auto)	evalCouplingResidual (Dune::index_constant< i > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< j > domainJ, std::size_t dofIdxGlobalJ) const
	evaluates the element residual of a coupled element of domain i which depends on the variables at the degree of freedom with index dofIdxGlobalJ of domain j
template<std::size_t i, typename std::enable_if_t<(GridGeometry< i >::discMethod !=DiscretizationMethod::staggered), int > = 0>
decltype(auto)	numericEpsilon (Dune::index_constant< i > id, const std::string &paramGroup) const
	return the numeric epsilon used for deflecting primary variables of coupled domain i.
template<std::size_t i, typename std::enable_if_t<(GridGeometry< i >::discMethod==DiscretizationMethod::staggered), int > = 0>
decltype(auto)	numericEpsilon (Dune::index_constant< i >, const std::string &paramGroup) const
	return the numeric epsilon used for deflecting primary variables of coupled domain i.
member functions concerning the coupling stencils
void	extendJacobianPattern (Dune::index_constant< id > domainI, JacobianPattern &pattern) const
	extend the jacobian pattern of the diagonal block of domain i by those entries that are not already in the uncoupled pattern

Static Public Attributes
static constexpr auto	stokesFaceIdx = typename MDTraits::template SubDomain<0>::Index()
static constexpr auto	stokesCellCenterIdx = typename MDTraits::template SubDomain<1>::Index()
static constexpr auto	stokesIdx = stokesFaceIdx
static constexpr auto	darcyIdx = typename MDTraits::template SubDomain<2>::Index()
static constexpr auto	cellCenterIdx = GridGeometry<0>::cellCenterIdx()
static constexpr auto	faceIdx = GridGeometry<0>::faceIdx()

Protected Member Functions
std::vector< std::size_t > &	emptyStencil ()
	Return a reference to an empty stencil.
void	removeDuplicates_ (std::vector< std::size_t > &stencil)

member functions concerning variable caching for element residual evaluations
void	updateCouplingContext (Dune::index_constant< i > domainI, const LocalAssemblerI &localAssemblerI, Dune::index_constant< j > domainJ, std::size_t dofIdxGlobalJ, const PrimaryVariables< j > &priVarsJ, int pvIdxJ)
	updates all data and variables that are necessary to evaluate the residual of the element of domain i this is called whenever one of the primary variables that the element residual depends on changes in domain j
void	bindCouplingContext (Dune::index_constant< i > domainI, const Element< i > &elementI, const Assembler &assembler)
	prepares all data and variables that are necessary to evaluate the residual of the element of domain i
void	updateCoupledVariables (Dune::index_constant< i > domainI, const LocalAssemblerI &localAssemblerI, UpdatableElementVolVars &elemVolVars, UpdatableFluxVarCache &elemFluxVarsCache)
	update variables of domain i that depend on variables in domain j after the coupling context has been updated
void	evalAdditionalDomainDerivatives (Dune::index_constant< i > domainI, const LocalAssemblerI &localAssemblerI, const typename LocalAssemblerI::LocalResidual::ElementResidualVector &origResiduals, JacobianMatrixDiagBlock &A, GridVariables &gridVariables)
	evaluate additional derivatives of the element residual of a domain with respect to dofs in the same domain that are not in the regular stencil (see CouplingManager::extendJacobianPattern)
void	setSubProblems (const std::tuple< std::shared_ptr< SubProblems >... > &problems)
	set the pointers to the sub problems
void	setSubProblem (std::shared_ptr< SubProblem > problem, Dune::index_constant< i > domainIdx)
	set a pointer to one of the sub problems
const Problem< i > &	problem (Dune::index_constant< i > domainIdx) const
	Return a reference to the sub problem.
SolutionVector &	curSol ()
	the solution vector of the coupled problem
const SolutionVector &	curSol () const
	the solution vector of the coupled problem

Member Typedef Documentation

◆ CouplingData

template<class MDTraits>

using Dumux::StokesDarcyCouplingManager< MDTraits >::CouplingData = StokesDarcyCouplingData<MDTraits, StokesDarcyCouplingManager<MDTraits>>

◆ CouplingStencilType

using Dumux::CouplingManager< MDTraits >::CouplingStencilType

inherited

default type used for coupling element stencils

◆ Traits

template<class MDTraits>

using Dumux::StaggeredCouplingManager< MDTraits >::Traits = MDTraits

inherited

Constructor & Destructor Documentation

◆ StokesDarcyCouplingManager()

template<class MDTraits>

Dumux::StokesDarcyCouplingManager< MDTraits >::StokesDarcyCouplingManager	(	std::shared_ptr< const GridGeometry< stokesIdx > >	stokesFvGridGeometry,
		std::shared_ptr< const GridGeometry< darcyIdx > >	darcyFvGridGeometry )

inline

Constructor.

Member Function Documentation

◆ bindCouplingContext() [1/5]

void Dumux::CouplingManager< MDTraits >::bindCouplingContext	(	Dune::index_constant< i >	domainI,
		const Element< i > &	elementI,
		const Assembler &	assembler )

inlineinherited

prepares all data and variables that are necessary to evaluate the residual of the element of domain i

Parameters

domainI	the domain index of domain i
elementI	the element whose residual we are assemling next
assembler	the multidomain assembler for access to all data necessary for the assembly of all domains

Note: this concerns all data that is used in the evaluation of the element residual and depends on one of the degrees of freedom returned by CouplingManager::couplingStencil; every coupled element residual depends at least on the solution of another domain, that why we always store a copy of the solution vector in the coupling manager, hence, in case the element residual only depends on primary variables of the other domain this function does nothing; overload this function in case the element residual depends on more than the primary variables of domain j

◆ bindCouplingContext() [2/5]

template<class MDTraits>

void Dumux::StokesDarcyCouplingManager< MDTraits >::bindCouplingContext	(	Dune::index_constant< darcyIdx >	domainI,
		const Element< darcyIdx > &	element ) const

inline

prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Stokes information)

◆ bindCouplingContext() [3/5]

template<class MDTraits>

template<class Assembler>

void Dumux::StokesDarcyCouplingManager< MDTraits >::bindCouplingContext	(	Dune::index_constant< darcyIdx >	domainI,
		const Element< darcyIdx > &	element,
		const Assembler &	assembler ) const

inline

prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Stokes information)

◆ bindCouplingContext() [4/5]

template<class MDTraits>

template<std::size_t i, std::enable_if_t<(i==stokesCellCenterIdx||i==stokesFaceIdx), int > = 0>

void Dumux::StokesDarcyCouplingManager< MDTraits >::bindCouplingContext	(	Dune::index_constant< i >	domainI,
		const Element< stokesCellCenterIdx > &	element ) const

inline

prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Darcy information)

◆ bindCouplingContext() [5/5]

template<class MDTraits>

template<std::size_t i, class Assembler, std::enable_if_t<(i==stokesCellCenterIdx||i==stokesFaceIdx), int > = 0>

void Dumux::StokesDarcyCouplingManager< MDTraits >::bindCouplingContext	(	Dune::index_constant< i >	domainI,
		const Element< stokesCellCenterIdx > &	element,
		const Assembler &	assembler ) const

inline

prepares all data and variables that are necessary to evaluate the residual of an Darcy element (i.e. Darcy information)

◆ computeStencils()

template<class MDTraits>

void Dumux::StokesDarcyCouplingManager< MDTraits >::computeStencils ( )

inline

Prepare the coupling stencils.

◆ couplingData()

template<class MDTraits>

const auto & Dumux::StokesDarcyCouplingManager< MDTraits >::couplingData ( ) const

inline

Access the coupling data.

◆ couplingStencil() [1/9]

template<class MDTraits>

const CouplingStencil & Dumux::StaggeredCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< cellCenterIdx >	domainI,
		const Element &	elementI,
		Dune::index_constant< faceIdx >	domainJ ) const

inline

returns an iteratable container of all indices of degrees of freedom of domain j that couple with / influence the element residual of the given element of domain i

Parameters

domainI	the domain index of domain i
elementI	the coupled element of domain í
domainJ	the domain index of domain j

Note: this is a specialization for getting the indices of the coupled staggered face dofs

◆ couplingStencil() [2/9]

template<class MDTraits>

const CouplingStencil & Dumux::StokesDarcyCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< darcyIdx >	domainI,
		const Element< darcyIdx > &	element,
		Dune::index_constant< stokesCellCenterIdx >	domainJ ) const

inline

The coupling stencil of domain I, i.e. which domain J dofs the given domain I element's residual depends on.

◆ couplingStencil() [3/9]

template<class MDTraits>

const CouplingStencil & Dumux::StokesDarcyCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< darcyIdx >	domainI,
		const Element< darcyIdx > &	element,
		Dune::index_constant< stokesFaceIdx >	domainJ ) const

inline

The coupling stencil of domain I, i.e. which domain J dofs the given domain I element's residual depends on.

◆ couplingStencil() [4/9]

template<class MDTraits>

const CouplingStencil & Dumux::StaggeredCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< faceIdx >	domainI,
		const SubControlVolumeFace &	scvfI,
		Dune::index_constant< cellCenterIdx >	domainJ ) const

inline

returns an iteratable container of all indices of degrees of freedom of domain j that couple with / influence the residual of the given subcontrolvolume face of domain i

Parameters

domainI	the domain index of domain i
scvfI	the coupled subcontrolvolume face of domain í
domainJ	the domain index of domain j

Note: this is a specialization for getting the indices of the coupled cellcentered dofs

◆ couplingStencil() [5/9]

template<class MDTraits>

template<std::size_t i, std::size_t j>

const CouplingStencil & Dumux::StokesDarcyCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< i >	domainI,
		const Element< i > &	element,
		Dune::index_constant< j >	domainJ ) const

inline

The coupling stencil of domain I, i.e. which domain J DOFs the given domain I element's residual depends on.

◆ couplingStencil() [6/9]

template<class MDTraits>

template<std::size_t i, std::size_t j>

const CouplingStencil Dumux::StaggeredCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< i >	domainI,
		const SubControlVolumeFace &	scvfI,
		Dune::index_constant< j >	domainJ ) const

inline

returns an iteratable container of all indices of degrees of freedom of domain j that couple with / influence the residual of the given subcontrolvolume face of domain i

Parameters

domainI	the domain index of domain i
scvfI	the coupled subcontrolvolume face of domain í
domainJ	the domain index of domain j

Note: This function has to be implemented by all coupling managers for all combinations of i and j

◆ couplingStencil() [7/9]

template<class MDTraits>

template<std::size_t i, std::size_t j>

const CouplingStencil & Dumux::StokesDarcyCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< i >	domainI,
		const SubControlVolumeFace< stokesIdx > &	scvf,
		Dune::index_constant< j >	domainJ ) const

inline

The coupling stencil of domain I, i.e. which domain J DOFs the given domain I element's residual depends on.

◆ couplingStencil() [8/9]

template<class MDTraits>

const CouplingStencil & Dumux::StokesDarcyCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< stokesCellCenterIdx >	domainI,
		const Element< stokesIdx > &	element,
		Dune::index_constant< darcyIdx >	domainJ ) const

inline

The coupling stencils.

The Stokes cell center coupling stencil w.r.t. Darcy DOFs

◆ couplingStencil() [9/9]

template<class MDTraits>

const CouplingStencil & Dumux::StokesDarcyCouplingManager< MDTraits >::couplingStencil	(	Dune::index_constant< stokesFaceIdx >	domainI,
		const SubControlVolumeFace< stokesIdx > &	scvf,
		Dune::index_constant< darcyIdx >	domainJ ) const

inline

The coupling stencil of a Stokes face w.r.t. Darcy DOFs.

◆ curSol() [1/2]

SolutionVector & Dumux::CouplingManager< MDTraits >::curSol ( )

inlineprotectedinherited

the solution vector of the coupled problem

Note: in case of numeric differentiation the solution vector always carries the deflected solution

◆ curSol() [2/2]

const SolutionVector & Dumux::CouplingManager< MDTraits >::curSol ( ) const

inlineprotectedinherited

the solution vector of the coupled problem

Note: in case of numeric differentiation the solution vector always carries the deflected solution

◆ darcyCouplingContext()

template<class MDTraits>

const auto & Dumux::StokesDarcyCouplingManager< MDTraits >::darcyCouplingContext	(	const Element< darcyIdx > &	element,
		const SubControlVolumeFace< darcyIdx > &	scvf ) const

inline

Access the coupling context needed for the Darcy domain.

◆ emptyStencil()

template<class MDTraits>

std::vector< std::size_t > & Dumux::StokesDarcyCouplingManager< MDTraits >::emptyStencil ( )

inlineprotected

Return a reference to an empty stencil.

◆ evalAdditionalDomainDerivatives()

void Dumux::CouplingManager< MDTraits >::evalAdditionalDomainDerivatives	(	Dune::index_constant< i >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		const typename LocalAssemblerI::LocalResidual::ElementResidualVector &	origResiduals,
		JacobianMatrixDiagBlock &	A,
		GridVariables &	gridVariables )

inlineinherited

evaluate additional derivatives of the element residual of a domain with respect to dofs in the same domain that are not in the regular stencil (see CouplingManager::extendJacobianPattern)

Note: Such additional dependencies can arise from the coupling, e.g. if a coupling source term depends on a non-local average of a quantity of the same domain

◆ evalCouplingResidual() [1/3]

template<class MDTraits>

decltype(auto) Dumux::CouplingManager< MDTraits >::evalCouplingResidual	(	Dune::index_constant< i >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< j >	domainJ,
		std::size_t	dofIdxGlobalJ ) const

inlineinherited

evaluates the element residual of a coupled element of domain i which depends on the variables at the degree of freedom with index dofIdxGlobalJ of domain j

Parameters

domainI	the domain index of domain i
localAssemblerI	the local assembler assembling the element residual of an element of domain i
domainJ	the domain index of domain j
dofIdxGlobalJ	the index of the degree of freedom of domain j which has an influence on the element residual of domain i

Note: the element whose residual is to be evaluated can be retrieved from the local assembler as localAssemblerI.element() as well as all up-to-date variables and caches.; the default implementation evaluates the complete element residual if only parts (i.e. only certain scvs, or only certain terms of the residual) of the residual are coupled to dof with index dofIdxGlobalJ the function can be overloaded in the coupling manager

Returns: the element residual

◆ evalCouplingResidual() [2/3]

template<class MDTraits>

template<class LocalAssemblerI, std::size_t j>

decltype(auto) Dumux::StaggeredCouplingManager< MDTraits >::evalCouplingResidual	(	Dune::index_constant< cellCenterIdx >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< j >	domainJ,
		std::size_t	dofIdxGlobalJ ) const

inline

Methods to be accessed by the assembly.

◆ evalCouplingResidual() [3/3]

template<class MDTraits>

template<class LocalAssemblerI, std::size_t j>

decltype(auto) Dumux::StaggeredCouplingManager< MDTraits >::evalCouplingResidual	(	Dune::index_constant< faceIdx >	domainI,
		const SubControlVolumeFace &	scvfI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< j >	domainJ,
		std::size_t	dofIdxGlobalJ ) const

inline

Methods to be accessed by the assembly.

◆ extendJacobianPattern()

void Dumux::CouplingManager< MDTraits >::extendJacobianPattern	(	Dune::index_constant< id >	domainI,
		JacobianPattern &	pattern ) const

inlineinherited

extend the jacobian pattern of the diagonal block of domain i by those entries that are not already in the uncoupled pattern

Note: per default we do not add such additional dependencies; Such additional dependencies can arise from the coupling, e.g. if a coupling source term depends on a non-local average of a quantity of the same domain

Warning List: if you overload this also implement evalAdditionalDomainDerivatives

◆ getAdditionalDofDependencies()

template<class MDTraits>

template<class IdType>

const std::vector< std::size_t > & Dumux::StokesDarcyCouplingManager< MDTraits >::getAdditionalDofDependencies	(	IdType	id,
		std::size_t	stokesElementIdx ) const

inline

There are no additional dof dependencies.

◆ getAdditionalDofDependenciesInverse()

template<class MDTraits>

template<class IdType>

const std::vector< std::size_t > & Dumux::StokesDarcyCouplingManager< MDTraits >::getAdditionalDofDependenciesInverse	(	IdType	id,
		std::size_t	darcyElementIdx ) const

inline

There are no additional dof dependencies.

◆ init()

template<class MDTraits>

void Dumux::StokesDarcyCouplingManager< MDTraits >::init	(	std::shared_ptr< const Problem< stokesIdx > >	stokesProblem,
		std::shared_ptr< const Problem< darcyIdx > >	darcyProblem,
		const SolutionVector &	curSol )

inline

Methods to be accessed by main.

Initialize the coupling manager

◆ isCoupledEntity() [1/2]

template<class MDTraits>

bool Dumux::StokesDarcyCouplingManager< MDTraits >::isCoupledEntity	(	Dune::index_constant< darcyIdx >	,
		const SubControlVolumeFace< darcyIdx > &	scvf ) const

inline

Returns whether a given free flow scvf is coupled to the other domain.

◆ isCoupledEntity() [2/2]

template<class MDTraits>

bool Dumux::StokesDarcyCouplingManager< MDTraits >::isCoupledEntity	(	Dune::index_constant< stokesIdx >	,
		const SubControlVolumeFace< stokesFaceIdx > &	scvf ) const

inline

Returns whether a given free flow scvf is coupled to the other domain.

◆ numericEpsilon() [1/2]

template<class MDTraits>

template<std::size_t i, typename std::enable_if_t<(GridGeometry< i >::discMethod !=DiscretizationMethod::staggered), int > = 0>

decltype(auto) Dumux::StaggeredCouplingManager< MDTraits >::numericEpsilon	(	Dune::index_constant< i >	id,
		const std::string &	paramGroup ) const

inlineinherited

return the numeric epsilon used for deflecting primary variables of coupled domain i.

Note: specialization for non-staggered schemes

◆ numericEpsilon() [2/2]

template<class MDTraits>

template<std::size_t i, typename std::enable_if_t<(GridGeometry< i >::discMethod==DiscretizationMethod::staggered), int > = 0>

decltype(auto) Dumux::StaggeredCouplingManager< MDTraits >::numericEpsilon	(	Dune::index_constant< i >	,
		const std::string &	paramGroup ) const

inlineinherited

return the numeric epsilon used for deflecting primary variables of coupled domain i.

Note: specialization for non-staggered schemes

◆ problem()

const Problem< i > & Dumux::CouplingManager< MDTraits >::problem ( Dune::index_constant< i > domainIdx ) const

inlineinherited

Return a reference to the sub problem.

Parameters

domainIdx The domain index

◆ removeDuplicates_()

template<class MDTraits>

void Dumux::StokesDarcyCouplingManager< MDTraits >::removeDuplicates_ ( std::vector< std::size_t > & stencil )

inlineprotected

◆ setSubProblem()

void Dumux::CouplingManager< MDTraits >::setSubProblem	(	std::shared_ptr< SubProblem >	problem,
		Dune::index_constant< i >	domainIdx )

inlineinherited

set a pointer to one of the sub problems

Parameters

problem	a pointer to the sub problem
domainIdx	the domain index of the sub problem

◆ setSubProblems()

void Dumux::CouplingManager< MDTraits >::setSubProblems ( const std::tuple< std::shared_ptr< SubProblems >... > & problems )

inlineinherited

set the pointers to the sub problems

Parameters

problems A tuple of shared pointers to the sub problems

◆ stokesCouplingContext()

template<class MDTraits>

const auto & Dumux::StokesDarcyCouplingManager< MDTraits >::stokesCouplingContext	(	const Element< stokesIdx > &	element,
		const SubControlVolumeFace< stokesIdx > &	scvf ) const

inline

Access the coupling context needed for the Stokes domain.

◆ update()

template<class MDTraits>

void Dumux::StokesDarcyCouplingManager< MDTraits >::update ( )

inline

Update after the grid has changed.

◆ updateCoupledVariables()

void Dumux::CouplingManager< MDTraits >::updateCoupledVariables	(	Dune::index_constant< i >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		UpdatableElementVolVars &	elemVolVars,
		UpdatableFluxVarCache &	elemFluxVarsCache )

inlineinherited

update variables of domain i that depend on variables in domain j after the coupling context has been updated

Parameters

domainI	the index of domain i
localAssemblerI	the local assembler assembling the element residual of an element of domain i
elemVolVars	the element volume variables (all volume variables in the element local stencil) to be updated
elemFluxVarsCache	the element flux variable cache (all flux variables in the element local stencil) to be updated

Note: Such variables do not necessarily exist and then this function does nothing (default); some examples from geomechanics: the porosity of (physical) domain i (porous medium flow) depends on the displacement vector of physical domain j (mechnanics) from domaindecomposition: the transmissibilities for fluxes of domain i to domain j depend on the permeability in domain j (which might depend in turn on the primary variables of domain i)

◆ updateCouplingContext() [1/6]

void Dumux::CouplingManager< MDTraits >::updateCouplingContext	(	Dune::index_constant< i >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< j >	domainJ,
		std::size_t	dofIdxGlobalJ,
		const PrimaryVariables< j > &	priVarsJ,
		int	pvIdxJ )

inlineinherited

updates all data and variables that are necessary to evaluate the residual of the element of domain i this is called whenever one of the primary variables that the element residual depends on changes in domain j

Parameters

domainI	the domain index of domain i
localAssemblerI	the local assembler assembling the element residual of an element of domain i
domainJ	the domain index of domain j
dofIdxGlobalJ	the index of the degree of freedom of domain j whose solution changed
priVarsJ	the new solution at the degree of freedom of domain j with index dofIdxGlobalJ
pvIdxJ	the index of the primary variable of domain j which has been updated

Note: this concerns all data that is used in the evaluation of the element residual and depends on the primary variables at the degree of freedom location with index dofIdxGlobalJ; the element whose residual is to be evaluated can be retrieved from the local assembler as localAssemblerI.element(); per default, we udpate the solution vector, if the element residual of domain i depends on more than the primary variables of domain j update the other dependent data here by overloading this function

◆ updateCouplingContext() [2/6]

template<class MDTraits>

template<class LocalAssemblerI>

void Dumux::StokesDarcyCouplingManager< MDTraits >::updateCouplingContext	(	Dune::index_constant< darcyIdx >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< darcyIdx >	domainJ,
		std::size_t	dofIdxGlobalJ,
		const PrimaryVariables< darcyIdx > &	priVarsJ,
		int	pvIdxJ )

inline

Update the coupling context for the Darcy residual w.r.t. Darcy DOFs.

◆ updateCouplingContext() [3/6]

template<class MDTraits>

template<class LocalAssemblerI>

void Dumux::StokesDarcyCouplingManager< MDTraits >::updateCouplingContext	(	Dune::index_constant< darcyIdx >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< stokesCellCenterIdx >	domainJ,
		const std::size_t	dofIdxGlobalJ,
		const PrimaryVariables< stokesCellCenterIdx > &	priVars,
		int	pvIdxJ )

inline

Update the coupling context for the Darcy residual w.r.t. the Stokes cell-center DOFs (DarcyToCC).

◆ updateCouplingContext() [4/6]

template<class MDTraits>

template<class LocalAssemblerI>

void Dumux::StokesDarcyCouplingManager< MDTraits >::updateCouplingContext	(	Dune::index_constant< darcyIdx >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< stokesFaceIdx >	domainJ,
		const std::size_t	dofIdxGlobalJ,
		const PrimaryVariables< stokesFaceIdx > &	priVars,
		int	pvIdxJ )

inline

Update the coupling context for the Darcy residual w.r.t. the Stokes face DOFs (DarcyToFace).

◆ updateCouplingContext() [5/6]

template<class MDTraits>

template<std::size_t i, class LocalAssemblerI, std::enable_if_t<(i==stokesCellCenterIdx||i==stokesFaceIdx), int > = 0>

void Dumux::StokesDarcyCouplingManager< MDTraits >::updateCouplingContext	(	Dune::index_constant< i >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< darcyIdx >	domainJ,
		const std::size_t	dofIdxGlobalJ,
		const PrimaryVariables< darcyIdx > &	priVars,
		int	pvIdxJ )

inline

Update the coupling context for the Stokes cc residual w.r.t. the Darcy DOFs (FaceToDarcy).

◆ updateCouplingContext() [6/6]

template<class MDTraits>

template<std::size_t i, std::size_t j, class LocalAssemblerI, class PriVarsJ>

void Dumux::StaggeredCouplingManager< MDTraits >::updateCouplingContext	(	Dune::index_constant< i >	domainI,
		const LocalAssemblerI &	localAssemblerI,
		Dune::index_constant< j >	domainJ,
		const std::size_t	dofIdxGlobalJ,
		const PriVarsJ &	priVarsJ,
		int	pvIdxJ )

inline

updates all data and variables that are necessary to evaluate the residual of the element of domain i this is called whenever one of the primary variables that the element residual depends on changes in domain j

Parameters

domainI	the domain index of domain i
localAssemblerI	the local assembler assembling the element residual of an element of domain i
domainJ	the domain index of domain j
dofIdxGlobalJ	the index of the degree of freedom of domain j whose solution changed
priVarsJ	the new solution at the degree of freedom of domain j with index dofIdxGlobalJ
pvIdxJ	the index of the primary variable of domain j which has been updated

Note: this concerns all data that is used in the evaluation of the element residual and depends on the primary variables at the degree of freedom location with index dofIdxGlobalJ; the element whose residual is to be evaluated can be retrieved from the local assembler as localAssemblerI.element(); per default, we udpate the solution vector, if the element residual of domain i depends on more than the primary variables of domain j update the other dependent data here by overloading this function

◆ updateSolution()

template<class MDTraits>

void Dumux::StokesDarcyCouplingManager< MDTraits >::updateSolution ( const SolutionVector & curSol )

inline

Update the solution vector before assembly.

Member Data Documentation

◆ cellCenterIdx

template<class MDTraits>

auto Dumux::StaggeredCouplingManager< MDTraits >::cellCenterIdx = GridGeometry<0>::cellCenterIdx()

staticconstexprinherited

◆ darcyIdx

template<class MDTraits>

auto Dumux::StokesDarcyCouplingManager< MDTraits >::darcyIdx = typename MDTraits::template SubDomain<2>::Index()

staticconstexpr

◆ faceIdx

template<class MDTraits>

auto Dumux::StaggeredCouplingManager< MDTraits >::faceIdx = GridGeometry<0>::faceIdx()

staticconstexprinherited

◆ stokesCellCenterIdx

template<class MDTraits>

auto Dumux::StokesDarcyCouplingManager< MDTraits >::stokesCellCenterIdx = typename MDTraits::template SubDomain<1>::Index()

staticconstexpr

◆ stokesFaceIdx

template<class MDTraits>

auto Dumux::StokesDarcyCouplingManager< MDTraits >::stokesFaceIdx = typename MDTraits::template SubDomain<0>::Index()

staticconstexpr

◆ stokesIdx

template<class MDTraits>

auto Dumux::StokesDarcyCouplingManager< MDTraits >::stokesIdx = stokesFaceIdx

staticconstexpr

The documentation for this class was generated from the following file:

multidomain/boundary/stokesdarcy/couplingmanager.hh

Description

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

member functions concerning variable caching for element residual evaluations

Member Typedef Documentation

◆ CouplingData

◆ CouplingStencilType

◆ Traits

Constructor & Destructor Documentation

◆ StokesDarcyCouplingManager()

Member Function Documentation

◆ bindCouplingContext() [1/5]

◆ bindCouplingContext() [2/5]

◆ bindCouplingContext() [3/5]

◆ bindCouplingContext() [4/5]

◆ bindCouplingContext() [5/5]

◆ computeStencils()

◆ couplingData()

◆ couplingStencil() [1/9]

◆ couplingStencil() [2/9]

◆ couplingStencil() [3/9]

◆ couplingStencil() [4/9]

◆ couplingStencil() [5/9]

◆ couplingStencil() [6/9]

◆ couplingStencil() [7/9]

◆ couplingStencil() [8/9]

◆ couplingStencil() [9/9]

◆ curSol() [1/2]

◆ curSol() [2/2]

◆ darcyCouplingContext()

◆ emptyStencil()

◆ evalAdditionalDomainDerivatives()

◆ evalCouplingResidual() [1/3]

◆ evalCouplingResidual() [2/3]

◆ evalCouplingResidual() [3/3]

◆ extendJacobianPattern()

◆ getAdditionalDofDependencies()

◆ getAdditionalDofDependenciesInverse()

◆ init()

◆ isCoupledEntity() [1/2]

◆ isCoupledEntity() [2/2]

◆ numericEpsilon() [1/2]

◆ numericEpsilon() [2/2]

◆ problem()

◆ removeDuplicates_()

◆ setSubProblem()

◆ setSubProblems()

◆ stokesCouplingContext()

◆ update()

◆ updateCoupledVariables()

◆ updateCouplingContext() [1/6]

◆ updateCouplingContext() [2/6]

◆ updateCouplingContext() [3/6]

◆ updateCouplingContext() [4/6]

◆ updateCouplingContext() [5/6]

◆ updateCouplingContext() [6/6]

◆ updateSolution()

Member Data Documentation

◆ cellCenterIdx

◆ darcyIdx

◆ faceIdx

◆ stokesCellCenterIdx

◆ stokesFaceIdx

◆ stokesIdx
