Specifies the parameters required by the SPE5 problem which are despondent on the thermodynamic state. More...

#include <dumux/material/fluidsystems/spe5parametercache.hh>

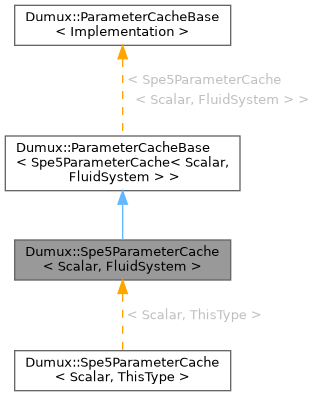

Inheritance diagram for Dumux::Spe5ParameterCache< Scalar, FluidSystem >:

Description

template<class Scalar, class FluidSystem>
class Dumux::Spe5ParameterCache< Scalar, FluidSystem >

Specifies the parameters required by the SPE5 problem which are despondent on the thermodynamic state.

Public Types
using	OilPhaseParams = PengRobinsonParamsMixture<Scalar, FluidSystem, oPhaseIdx, true>
using	GasPhaseParams = PengRobinsonParamsMixture<Scalar, FluidSystem, gPhaseIdx, true>
enum	ExceptQuantities

Public Member Functions
	Spe5ParameterCache ()
	The constructor.
template<class FluidState>
void	updatePhase (const FluidState &fs, int phaseIdx, int except=ParentType::None)
	Update all parameters required by the fluid system to calculate some quantities for the phase.
template<class FluidState>
void	updateSingleMoleFraction (const FluidState &fs, int phaseIdx, int compIdx)
	Update all cached parameters of a specific fluid phase which depend on the mole fraction of a single component.
Scalar	a (int phaseIdx) const
	The Peng-Robinson attractive parameter for a phase.
Scalar	b (int phaseIdx) const
	The Peng-Robinson co-volume for a phase.
Scalar	aPure (int phaseIdx, int compIdx) const
	The Peng-Robinson attractive parameter for a pure component given the same temperature and pressure of the phase.
Scalar	bPure (int phaseIdx, int compIdx) const
	The Peng-Robinson co-volume for a pure component given the same temperature and pressure of the phase.
Scalar	molarVolume (int phaseIdx) const
	Returns the molar volume of a phase \(\mathrm{[m^3/mol]}\).
const OilPhaseParams &	oilPhaseParams () const
	Returns the Peng-Robinson mixture parameters for the oil phase.
const GasPhaseParams &	gasPhaseParams () const
	Returns the Peng-Robinson mixture parameters for the gas phase.
template<class FluidState>
void	updateEosParams (const FluidState &fs, int phaseIdx, int exceptQuantities=ParentType::None)
	Update all parameters required by the equation of state to calculate some quantities for the phase.
void	updateAll (const FluidState &fs, int exceptQuantities=None)
	Update all cached quantities for all phases.
void	updateAllPressures (const FluidState &fs)
	Update all cached quantities which depend on the pressure of any fluid phase.
void	updateAllTemperatures (const FluidState &fs)
	Update all cached quantities which depend on the temperature of any fluid phase.
void	updateTemperature (const FluidState &fs, int phaseIdx)
	Update all cached parameters of a specific fluid phase which depend on temperature.
void	updatePressure (const FluidState &fs, int phaseIdx)
	Update all cached parameters of a specific fluid phase which depend on pressure.
void	updateComposition (const FluidState &fs, int phaseIdx)
	Update all cached parameters of a specific fluid phase which depend on composition.

Protected Member Functions
template<class FluidState>
void	updatePure_ (const FluidState &fs, int phaseIdx)
	Update all parameters of a phase which only depend on temperature and/or pressure.
template<class FluidState>
void	updateMix_ (const FluidState &fs, int phaseIdx)
	Update all parameters of a phase which depend on the fluid composition. It is assumed that updatePure() has been called before this method.
template<class FluidState>
void	updateMolarVolume_ (const FluidState &fs, int phaseIdx)

Protected Attributes
bool	VmUpToDate_ [numPhases]
Scalar	Vm_ [numPhases]
OilPhaseParams	oilPhaseParams_
GasPhaseParams	gasPhaseParams_

Member Typedef Documentation

◆ GasPhaseParams

template<class Scalar, class FluidSystem>

using Dumux::Spe5ParameterCache< Scalar, FluidSystem >::GasPhaseParams = PengRobinsonParamsMixture<Scalar, FluidSystem, gPhaseIdx, true>

◆ OilPhaseParams

template<class Scalar, class FluidSystem>

using Dumux::Spe5ParameterCache< Scalar, FluidSystem >::OilPhaseParams = PengRobinsonParamsMixture<Scalar, FluidSystem, oPhaseIdx, true>

Member Enumeration Documentation

◆ ExceptQuantities

enum Dumux::ParameterCacheBase::ExceptQuantities

inherited

Constructor & Destructor Documentation

◆ Spe5ParameterCache()

template<class Scalar, class FluidSystem>

Dumux::Spe5ParameterCache< Scalar, FluidSystem >::Spe5ParameterCache ( )

inline

The constructor.

Member Function Documentation

◆ a()

template<class Scalar, class FluidSystem>

Scalar Dumux::Spe5ParameterCache< Scalar, FluidSystem >::a ( int phaseIdx ) const

inline

The Peng-Robinson attractive parameter for a phase.

Parameters

phaseIdx The index of the fluid phase to consider

◆ aPure()

template<class Scalar, class FluidSystem>

Scalar Dumux::Spe5ParameterCache< Scalar, FluidSystem >::aPure	(	int	phaseIdx,
		int	compIdx ) const

inline

The Peng-Robinson attractive parameter for a pure component given the same temperature and pressure of the phase.

Parameters

compIdx	The index of the component to consider
phaseIdx	The index of the fluid phase to consider

◆ b()

template<class Scalar, class FluidSystem>

Scalar Dumux::Spe5ParameterCache< Scalar, FluidSystem >::b ( int phaseIdx ) const

inline

The Peng-Robinson co-volume for a phase.

Parameters

phaseIdx The index of the fluid phase to consider

◆ bPure()

template<class Scalar, class FluidSystem>

Scalar Dumux::Spe5ParameterCache< Scalar, FluidSystem >::bPure	(	int	phaseIdx,
		int	compIdx ) const

inline

The Peng-Robinson co-volume for a pure component given the same temperature and pressure of the phase.

Parameters

compIdx	The index of the component to consider
phaseIdx	The index of the fluid phase to consider

◆ gasPhaseParams()

template<class Scalar, class FluidSystem>

const GasPhaseParams & Dumux::Spe5ParameterCache< Scalar, FluidSystem >::gasPhaseParams ( ) const

inline

Returns the Peng-Robinson mixture parameters for the gas phase.

◆ molarVolume()

template<class Scalar, class FluidSystem>

Scalar Dumux::Spe5ParameterCache< Scalar, FluidSystem >::molarVolume ( int phaseIdx ) const

inline

Returns the molar volume of a phase \(\mathrm{[m^3/mol]}\).

Parameters

phaseIdx The index of the fluid phase to consider

◆ oilPhaseParams()

template<class Scalar, class FluidSystem>

const OilPhaseParams & Dumux::Spe5ParameterCache< Scalar, FluidSystem >::oilPhaseParams ( ) const

inline

Returns the Peng-Robinson mixture parameters for the oil phase.

◆ updateAll()

void Dumux::ParameterCacheBase< Spe5ParameterCache< Scalar, FluidSystem > >::updateAll	(	const FluidState &	fs,
		int	exceptQuantities = None )

inlineinherited

Update all cached quantities for all phases.

The except argument contains a bit field of the quantities which have not been modified since the last call to an update() method.

◆ updateAllPressures()

void Dumux::ParameterCacheBase< Spe5ParameterCache< Scalar, FluidSystem > >::updateAllPressures ( const FluidState & fs )

inlineinherited

Update all cached quantities which depend on the pressure of any fluid phase.

◆ updateAllTemperatures()

void Dumux::ParameterCacheBase< Spe5ParameterCache< Scalar, FluidSystem > >::updateAllTemperatures ( const FluidState & fs )

inlineinherited

Update all cached quantities which depend on the temperature of any fluid phase.

◆ updateComposition()

void Dumux::ParameterCacheBase< Spe5ParameterCache< Scalar, FluidSystem > >::updateComposition	(	const FluidState &	fs,
		int	phaseIdx )

inlineinherited

Update all cached parameters of a specific fluid phase which depend on composition.

Only use this method if neither the pressure nor the temperature of the phase changed between two update*() calls. If more changed, call updatePhase()!

◆ updateEosParams()

template<class Scalar, class FluidSystem>

template<class FluidState>

void Dumux::Spe5ParameterCache< Scalar, FluidSystem >::updateEosParams	(	const FluidState &	fs,
		int	phaseIdx,
		int	exceptQuantities = ParentType::None )

inline

Update all parameters required by the equation of state to calculate some quantities for the phase.

◆ updateMix_()

template<class Scalar, class FluidSystem>

template<class FluidState>

void Dumux::Spe5ParameterCache< Scalar, FluidSystem >::updateMix_	(	const FluidState &	fs,
		int	phaseIdx )

inlineprotected

Update all parameters of a phase which depend on the fluid composition. It is assumed that updatePure() has been called before this method.

Here, the mixing rule kicks in.

◆ updateMolarVolume_()

template<class Scalar, class FluidSystem>

template<class FluidState>

void Dumux::Spe5ParameterCache< Scalar, FluidSystem >::updateMolarVolume_	(	const FluidState &	fs,
		int	phaseIdx )

inlineprotected

◆ updatePhase()

template<class Scalar, class FluidSystem>

template<class FluidState>

void Dumux::Spe5ParameterCache< Scalar, FluidSystem >::updatePhase	(	const FluidState &	fs,
		int	phaseIdx,
		int	except = ParentType::None )

inline

Update all parameters required by the fluid system to calculate some quantities for the phase.

Parameters

fs	An arbitrary fluid state
phaseIdx	The index of the fluid phase to consider
except	The except quantity

◆ updatePressure()

void Dumux::ParameterCacheBase< Spe5ParameterCache< Scalar, FluidSystem > >::updatePressure	(	const FluidState &	fs,
		int	phaseIdx )

inlineinherited

Update all cached parameters of a specific fluid phase which depend on pressure.

Only use this method if only the pressure of a phase changed between two update*() calls. If more changed, call updatePhase()!

◆ updatePure_()

template<class Scalar, class FluidSystem>

template<class FluidState>

void Dumux::Spe5ParameterCache< Scalar, FluidSystem >::updatePure_	(	const FluidState &	fs,
		int	phaseIdx )

inlineprotected

Update all parameters of a phase which only depend on temperature and/or pressure.

This usually means the parameters for the pure components.

◆ updateSingleMoleFraction()

template<class Scalar, class FluidSystem>

template<class FluidState>

void Dumux::Spe5ParameterCache< Scalar, FluidSystem >::updateSingleMoleFraction	(	const FluidState &	fs,
		int	phaseIdx,
		int	compIdx )

inline

Update all cached parameters of a specific fluid phase which depend on the mole fraction of a single component.

Only use this method if just a single component's concentration changed between two update*() calls. If more than one concentration changed, call updatePhaseComposition() of updatePhase()!

Parameters

fs	An arbitrary fluid state
compIdx	The index of the component to consider
phaseIdx	The index of the fluid phase to consider

◆ updateTemperature()

void Dumux::ParameterCacheBase< Spe5ParameterCache< Scalar, FluidSystem > >::updateTemperature	(	const FluidState &	fs,
		int	phaseIdx )

inlineinherited

Update all cached parameters of a specific fluid phase which depend on temperature.

Only use this method if only the temperature of a phase changed between two update*() calls. If more changed, call updatePhase()!

Member Data Documentation

◆ gasPhaseParams_

template<class Scalar, class FluidSystem>

GasPhaseParams Dumux::Spe5ParameterCache< Scalar, FluidSystem >::gasPhaseParams_

protected

◆ oilPhaseParams_

template<class Scalar, class FluidSystem>

OilPhaseParams Dumux::Spe5ParameterCache< Scalar, FluidSystem >::oilPhaseParams_

protected

◆ Vm_

template<class Scalar, class FluidSystem>

Scalar Dumux::Spe5ParameterCache< Scalar, FluidSystem >::Vm_[numPhases]

protected

◆ VmUpToDate_

template<class Scalar, class FluidSystem>

bool Dumux::Spe5ParameterCache< Scalar, FluidSystem >::VmUpToDate_[numPhases]

protected

The documentation for this class was generated from the following file:

spe5parametercache.hh
