A two-phase fluid system with two components water \((\mathrm{H_2O})\) Nitrogen \((\mathrm{N_2})\) for non-equilibrium models. TODO: Is this fluid system necessary?? More...

#include <dumux/material/fluidsystems/h2on2kinetic.hh>

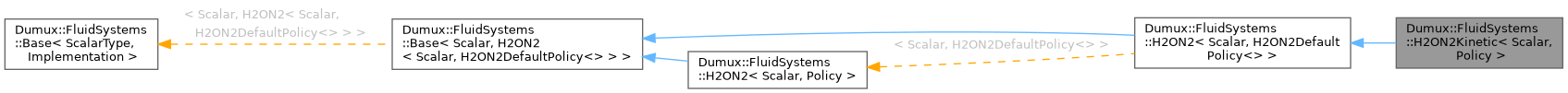

Inheritance diagram for Dumux::FluidSystems::H2ON2Kinetic< Scalar, Policy >:

Description

template<class Scalar, class Policy = H2ON2DefaultPolicy<>>
class Dumux::FluidSystems::H2ON2Kinetic< Scalar, Policy >

A two-phase fluid system with two components water \((\mathrm{H_2O})\) Nitrogen \((\mathrm{N_2})\) for non-equilibrium models. TODO: Is this fluid system necessary??

Public Types
using	ParameterCache = NullParameterCache
	The type of parameter cache objects.
using	H2O
	The components for pure water.
using	N2
	The components for pure nitrogen.
using	Scalar
	export the scalar type

Static Public Member Functions
template<class FluidState>
static Scalar	componentEnthalpy (FluidState &fluidState, const int phaseIdx, const int compIdx)
	Return the enthalpy of a component in a phase.
static Scalar	henry (Scalar temperature)
	Return the Henry constant for a component in a phase. \(\mathrm{[Pa]}\).
static Scalar	vaporPressure (Scalar temperature)
	Return the vapor pressure of a component above one phase. \(\mathrm{[Pa]}\).
static Scalar	density (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Calculate the density \(\mathrm{[kg/m^3]}\) of a fluid phase.
static Scalar	density (const FluidState &fluidState, int phaseIdx)
	Calculate the density \(\mathrm{[kg/m^3]}\) of a fluid phase.
static Scalar	molarDensity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Calculate the molar density \(\mathrm{[mol/m^3]}\) of a fluid phase.
static Scalar	molarDensity (const FluidState &fluidState, int phaseIdx)
	Calculate the molar density \(\mathrm{[mol/m^3]}\) of a fluid phase.
static Scalar	viscosity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Calculate the dynamic viscosity of a fluid phase \(\mathrm{[Pa*s]}\).
static Scalar	viscosity (const FluidState &fluidState, int phaseIdx)
	Calculate the dynamic viscosity of a fluid phase \(\mathrm{[Pa*s]}\).
static Scalar	fugacityCoefficient (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx, int compIdx)
	Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.
static Scalar	fugacityCoefficient (const FluidState &fluidState, int phaseIdx, int compIdx)
	Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.
static Scalar	diffusionCoefficient (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx, int compIdx)
	Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).
static Scalar	diffusionCoefficient (const FluidState &fluidState, int phaseIdx, int compIdx)
	Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).
static Scalar	binaryDiffusionCoefficient (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx, int compIIdx, int compJIdx)
	Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.
static Scalar	binaryDiffusionCoefficient (const FluidState &fluidState, int phaseIdx, int compIIdx, int compJIdx)
	Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.
static Scalar	enthalpy (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Given a phase's composition, temperature, pressure and density, calculate its specific enthalpy \(\mathrm{[J/kg]}\).
static Scalar	enthalpy (const FluidState &fluidState, int phaseIdx)
	Given a phase's composition, temperature, pressure and density, calculate its specific enthalpy \(\mathrm{[J/kg]}\).
static Scalar	thermalConductivity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Thermal conductivity \(\lambda_\alpha \) of a fluid phase \(\mathrm{[W/(m K)]}\).
static Scalar	thermalConductivity (const FluidState &fluidState, int phaseIdx)
	Thermal conductivity \(\lambda_\alpha \) of a fluid phase \(\mathrm{[W/(m K)]}\).
static Scalar	heatCapacity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Specific isobaric heat capacity \(c_{p,\alpha}\) of a fluid phase \(\mathrm{[J/(kg*K)]}\).
static Scalar	heatCapacity (const FluidState &fluidState, int phaseIdx)
	Specific isobaric heat capacity \(c_{p,\alpha}\) of a fluid phase \(\mathrm{[J/(kg*K)]}\).
static std::string	phaseName (int phaseIdx)
	Return the human readable name of a fluid phase.
static constexpr bool	isMiscible ()
	Returns whether the fluids are miscible.
static constexpr bool	isGas (int phaseIdx)
	Return whether a phase is gaseous.
static bool	isIdealMixture (int phaseIdx)
	Returns true if and only if a fluid phase is assumed to be an ideal mixture.
static constexpr bool	isCompressible (int phaseIdx)
	Returns true if and only if a fluid phase is assumed to be compressible.
static bool	isIdealGas (int phaseIdx)
	Returns true if and only if a fluid phase is assumed to be an ideal gas.
static std::string	componentName (int compIdx)
	Return the human readable name of a component.
static Scalar	molarMass (int compIdx)
	Return the molar mass of a component in \(\mathrm{[kg/mol]}\).
static Scalar	criticalTemperature (int compIdx)
	Critical temperature of a component \(\mathrm{[K]}\).
static Scalar	criticalPressure (int compIdx)
	Critical pressure of a component \(\mathrm{[Pa]}\).
static Scalar	kelvinVaporPressure (const FluidState &fluidState, const int phaseIdx, const int compIdx)
	Vapor pressure including the Kelvin equation in \(\mathrm{[Pa]}\).
static Scalar	criticalMolarVolume (int compIdx)
	Molar volume of a component at the critical point \(\mathrm{[m^3/mol]}\).
static Scalar	acentricFactor (int compIdx)
	The acentric factor of a component \(\mathrm{[-]}\).
static void	init ()
	Initialize the fluid system's static parameters generically.
static Scalar	componentEnthalpy (const FluidState &fluidState, int phaseIdx, int componentIdx)
	Returns the specific enthalpy \(\mathrm{[J/kg]}\) of a component in the specified phase.
static constexpr bool	isTracerFluidSystem ()
	Some properties of the fluid system.
static constexpr int	getMainComponent (int phaseIdx)
	Get the main component of a given phase if possible.
static constexpr bool	viscosityIsConstant (int phaseIdx)
	Returns true if and only if a fluid phase is assumed to have a constant viscosity.

Static Public Attributes
static constexpr int	numPhases
	Number of phases in the fluid system.
static constexpr int	numComponents
	Number of components in the fluid system.
static constexpr int	liquidPhaseIdx
	index of the liquid phase
static constexpr int	gasPhaseIdx
	index of the gas phase
static constexpr int	phase0Idx
	index of the first phase
static constexpr int	phase1Idx
	index of the second phase
static constexpr int	H2OIdx
static constexpr int	N2Idx
static constexpr int	comp0Idx
	index of the first component
static constexpr int	comp1Idx
	index of the second component
static constexpr int	liquidCompIdx
	index of the liquid component
static constexpr int	gasCompIdx
	index of the gas component

Member Typedef Documentation

◆ H2O

using Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::H2O

inherited

The components for pure water.

◆ N2

using Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::N2

inherited

The components for pure nitrogen.

◆ ParameterCache

template<class Scalar, class Policy = H2ON2DefaultPolicy<>>

using Dumux::FluidSystems::H2ON2Kinetic< Scalar, Policy >::ParameterCache = NullParameterCache

The type of parameter cache objects.

◆ Scalar

using Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::Scalar

inherited

export the scalar type

Member Function Documentation

◆ acentricFactor()

Scalar Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::acentricFactor ( int compIdx )

inlinestaticinherited

The acentric factor of a component \(\mathrm{[-]}\).

Parameters

compIdx The index of the component to consider

◆ binaryDiffusionCoefficient() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::binaryDiffusionCoefficient	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	compIIdx,
		int	compJIdx )

inlinestaticinherited

Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase
compIIdx	Index of the component i
compJIdx	Index of the component j

◆ binaryDiffusionCoefficient() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx,
	int	compIIdx,
	int	compJIdx )

staticinherited

Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase
compIIdx	Index of the component i
compJIdx	Index of the component j

◆ componentEnthalpy() [1/2]

Scalar Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::componentEnthalpy	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	componentIdx )

inlinestaticinherited

Returns the specific enthalpy \(\mathrm{[J/kg]}\) of a component in the specified phase.

Parameters

fluidState	The fluid state
phaseIdx	The index of the phase
componentIdx	The index of the component

◆ componentEnthalpy() [2/2]

template<class Scalar, class Policy = H2ON2DefaultPolicy<>>

template<class FluidState>

Scalar Dumux::FluidSystems::H2ON2Kinetic< Scalar, Policy >::componentEnthalpy	(	FluidState &	fluidState,
		const int	phaseIdx,
		const int	compIdx )

inlinestatic

Return the enthalpy of a component in a phase.

Parameters

fluidState	A container with the current (physical) state of the fluid
phaseIdx	The index of the phase to consider
compIdx	The index of the component to consider

◆ componentName()

std::string Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::componentName ( int compIdx )

inlinestaticinherited

Return the human readable name of a component.

Parameters

compIdx The index of the component to consider

◆ criticalMolarVolume()

Scalar Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::criticalMolarVolume ( int compIdx )

inlinestaticinherited

Molar volume of a component at the critical point \(\mathrm{[m^3/mol]}\).

Parameters

compIdx The index of the component to consider

◆ criticalPressure()

Scalar Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::criticalPressure ( int compIdx )

inlinestaticinherited

Critical pressure of a component \(\mathrm{[Pa]}\).

Parameters

compIdx The index of the component to consider

◆ criticalTemperature()

Scalar Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::criticalTemperature ( int compIdx )

inlinestaticinherited

Critical temperature of a component \(\mathrm{[K]}\).

Parameters

compIdx The index of the component to consider

◆ density() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::density	(	const FluidState &	fluidState,
		int	phaseIdx )

inlinestaticinherited

Calculate the density \(\mathrm{[kg/m^3]}\) of a fluid phase.

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase

◆ density() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx )

staticinherited

Calculate the density \(\mathrm{[kg/m^3]}\) of a fluid phase.

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ diffusionCoefficient() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::diffusionCoefficient	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	compIdx )

inlinestaticinherited

Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase
compIdx	Index of the component Molecular diffusion of a component \(\mathrm{\kappa}\) is caused by a gradient of the chemical potential and follows the law

\[ J = - D \mathbf{grad} \mu_\kappa \]

where \(\mathrm{\mu_\kappa}\) is the component's chemical potential, \(\mathrm{D}\) is the diffusion coefficient and \(\mathrm{J}\) is the diffusive flux. \(\mathrm{\mu_\kappa}\) is connected to the component's fugacity \(\mathrm{f_\kappa}\) by the relation

\[ \mu_\kappa = R T_\alpha \mathrm{ln} \frac{f_\kappa}{p_\alpha} \]

where \(\mathrm{p_\alpha}\) and \(\mathrm{T_\alpha}\) are the fluid phase' pressure and temperature.

◆ diffusionCoefficient() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx,
	int	compIdx )

staticinherited

Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase
compIdx	Index of the component Molecular diffusion of a component \(\mathrm{\kappa}\) is caused by a gradient of the chemical potential and follows the law

\[ J = - D \mathbf{grad} \mu_\kappa \]

where \(\mathrm{\mu_\kappa}\) is the component's chemical potential, \(\mathrm{D}\) is the diffusion coefficient and \(\mathrm{J}\) is the diffusive flux. \(\mathrm{\mu_\kappa}\) is connected to the component's fugacity \(\mathrm{f_\kappa}\) by the relation

\[ \mu_\kappa = R T_\alpha \mathrm{ln} \frac{f_\kappa}{p_\alpha} \]

where \(\mathrm{p_\alpha}\) and \(\mathrm{T_\alpha}\) are the fluid phase' pressure and temperature.

◆ enthalpy() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::enthalpy	(	const FluidState &	fluidState,
		int	phaseIdx )

inlinestaticinherited

Given a phase's composition, temperature, pressure and density, calculate its specific enthalpy \(\mathrm{[J/kg]}\).

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase

◆ enthalpy() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx )

staticinherited

Given a phase's composition, temperature, pressure and density, calculate its specific enthalpy \(\mathrm{[J/kg]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ fugacityCoefficient() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::fugacityCoefficient	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	compIdx )

inlinestaticinherited

Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.

The fugacity coefficient \(\mathrm{\phi^\kappa_\alpha}\) is connected to the fugacity \(\mathrm{f^\kappa_\alpha}\) and the component's mole fraction \(\mathrm{x^\kappa_\alpha}\) by means of the relation

\[f^\kappa_\alpha = \phi^\kappa_\alpha\;x^\kappa_\alpha\;p_\alpha \]

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase
compIdx	Index of the component

◆ fugacityCoefficient() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx,
	int	compIdx )

staticinherited

Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.

The fugacity coefficient \(\mathrm{\phi^\kappa_\alpha}\) is connected to the fugacity \(\mathrm{f^\kappa_\alpha}\) and the component's mole fraction \(\mathrm{x^\kappa_\alpha}\) by means of the relation

\[f^\kappa_\alpha = \phi^\kappa_\alpha\;x^\kappa_\alpha\;p_\alpha \]

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase
compIdx	Index of the component

◆ getMainComponent()

constexpr int Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::getMainComponent ( int phaseIdx )

inlinestaticconstexprinherited

Get the main component of a given phase if possible.

Parameters

phaseIdx The index of the fluid phase to consider

Todo: Unfortunately we currently still have the assumption in some volume variables (e.g. 1pnc, 2pnc) that the main component index of a phase is equal to the phase index of that phase. This means changing this only works if the volume variables are written accordingly.

Note: This only makes sense if this is not a tracer fluid system (then the bulk component is not balanced)

◆ heatCapacity() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::heatCapacity	(	const FluidState &	fluidState,
		int	phaseIdx )

inlinestaticinherited

Specific isobaric heat capacity \(c_{p,\alpha}\) of a fluid phase \(\mathrm{[J/(kg*K)]}\).

Parameters

fluidState	represents all relevant thermodynamic quantities of a fluid system
phaseIdx	Index of the fluid phase

Given a fluid state, an up-to-date parameter cache and a phase index, this method computes the isobaric heat capacity \(c_{p,\alpha}\) of the fluid phase. The isobaric heat capacity is defined as the partial derivative of the specific enthalpy \(h_\alpha\) to the fluid pressure \(p_\alpha\):

\( c_{p,\alpha} = \frac{\partial h_\alpha}{\partial p_\alpha} \)

◆ heatCapacity() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx )

staticinherited

Specific isobaric heat capacity \(c_{p,\alpha}\) of a fluid phase \(\mathrm{[J/(kg*K)]}\).

Parameters

fluidState	represents all relevant thermodynamic quantities of a fluid system
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

Given a fluid state, an up-to-date parameter cache and a phase index, this method computes the isobaric heat capacity \(c_{p,\alpha}\) of the fluid phase. The isobaric heat capacity is defined as the partial derivative of the specific enthalpy \(h_\alpha\) to the fluid pressure \(p_\alpha\):

\( c_{p,\alpha} = \frac{\partial h_\alpha}{\partial p_\alpha} \)

◆ henry()

template<class Scalar, class Policy = H2ON2DefaultPolicy<>>

Scalar Dumux::FluidSystems::H2ON2Kinetic< Scalar, Policy >::henry ( Scalar temperature )

inlinestatic

Return the Henry constant for a component in a phase. \(\mathrm{[Pa]}\).

Parameters

temperature The given temperature

◆ init()

void Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::init ( )

inlinestaticinherited

Initialize the fluid system's static parameters generically.

If a tabulated H2O component is used, we do our best to create tables that always work.

◆ isCompressible()

constexpr bool Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::isCompressible ( int phaseIdx )

inlinestaticconstexprinherited

Returns true if and only if a fluid phase is assumed to be compressible.

Compressible means that the partial derivative of the density to the fluid pressure is always larger than zero.

Parameters

phaseIdx The index of the fluid phase to consider

◆ isGas()

constexpr bool Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::isGas ( int phaseIdx )

inlinestaticconstexprinherited

Return whether a phase is gaseous.

Parameters

phaseIdx The index of the fluid phase to consider

◆ isIdealGas()

bool Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::isIdealGas ( int phaseIdx )

inlinestaticinherited

Returns true if and only if a fluid phase is assumed to be an ideal gas.

Parameters

phaseIdx The index of the fluid phase to consider

◆ isIdealMixture()

bool Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::isIdealMixture ( int phaseIdx )

inlinestaticinherited

Returns true if and only if a fluid phase is assumed to be an ideal mixture.

We define an ideal mixture as a fluid phase where the fugacity coefficients of all components times the pressure of the phase are independent on the fluid composition. This assumption is true if Henry's law and Raoult's law apply. If you are unsure what this function should return, it is safe to return false. The only damage done will be (slightly) increased computation times in some cases.

Parameters

phaseIdx The index of the fluid phase to consider

◆ isMiscible()

constexpr bool Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::isMiscible ( )

inlinestaticconstexprinherited

Returns whether the fluids are miscible.

◆ isTracerFluidSystem()

constexpr bool Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::isTracerFluidSystem ( )

inlinestaticconstexprinherited

Some properties of the fluid system.

If the fluid system only contains tracer components

◆ kelvinVaporPressure()

Scalar Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::kelvinVaporPressure	(	const FluidState &	fluidState,
		const int	phaseIdx,
		const int	compIdx )

inlinestaticinherited

Vapor pressure including the Kelvin equation in \(\mathrm{[Pa]}\).

Calculate the decreased vapor pressure due to capillarity

Parameters

fluidState	An abitrary fluid state
phaseIdx	The index of the fluid phase to consider
compIdx	The index of the component to consider

◆ molarDensity() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::molarDensity	(	const FluidState &	fluidState,
		int	phaseIdx )

inlinestaticinherited

Calculate the molar density \(\mathrm{[mol/m^3]}\) of a fluid phase.

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase

◆ molarDensity() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx )

staticinherited

Calculate the molar density \(\mathrm{[mol/m^3]}\) of a fluid phase.

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ molarMass()

Scalar Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::molarMass ( int compIdx )

inlinestaticinherited

Return the molar mass of a component in \(\mathrm{[kg/mol]}\).

Parameters

compIdx The index of the component to consider

◆ phaseName()

std::string Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::phaseName ( int phaseIdx )

inlinestaticinherited

Return the human readable name of a fluid phase.

Parameters

phaseIdx The index of the fluid phase to consider

◆ thermalConductivity() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::thermalConductivity	(	const FluidState &	fluidState,
		int	phaseIdx )

inlinestaticinherited

Thermal conductivity \(\lambda_\alpha \) of a fluid phase \(\mathrm{[W/(m K)]}\).

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase

◆ thermalConductivity() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx )

staticinherited

Thermal conductivity \(\lambda_\alpha \) of a fluid phase \(\mathrm{[W/(m K)]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ vaporPressure()

template<class Scalar, class Policy = H2ON2DefaultPolicy<>>

Scalar Dumux::FluidSystems::H2ON2Kinetic< Scalar, Policy >::vaporPressure ( Scalar temperature )

inlinestatic

Return the vapor pressure of a component above one phase. \(\mathrm{[Pa]}\).

Parameters

temperature The given temperature

◆ viscosity() [1/2]

Scalar Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::viscosity	(	const FluidState &	fluidState,
		int	phaseIdx )

inlinestaticinherited

Calculate the dynamic viscosity of a fluid phase \(\mathrm{[Pa*s]}\).

Parameters

fluidState	The fluid state
phaseIdx	Index of the fluid phase

◆ viscosity() [2/2]

(	const FluidState &	fluidState,
	const ParameterCache &	paramCache,
	int	phaseIdx )

staticinherited

Calculate the dynamic viscosity of a fluid phase \(\mathrm{[Pa*s]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ viscosityIsConstant()

constexpr bool Dumux::FluidSystems::Base< Scalar, H2ON2< Scalar, H2ON2DefaultPolicy<> > >::viscosityIsConstant ( int phaseIdx )

inlinestaticconstexprinherited

Returns true if and only if a fluid phase is assumed to have a constant viscosity.

Parameters

phaseIdx The index of the fluid phase to consider

Member Data Documentation

◆ comp0Idx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::comp0Idx

staticconstexprinherited

index of the first component

◆ comp1Idx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::comp1Idx

staticconstexprinherited

index of the second component

◆ gasCompIdx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::gasCompIdx

staticconstexprinherited

index of the gas component

◆ gasPhaseIdx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::gasPhaseIdx

staticconstexprinherited

index of the gas phase

◆ H2OIdx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::H2OIdx

staticconstexprinherited

◆ liquidCompIdx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::liquidCompIdx

staticconstexprinherited

index of the liquid component

◆ liquidPhaseIdx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::liquidPhaseIdx

staticconstexprinherited

index of the liquid phase

◆ N2Idx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::N2Idx

staticconstexprinherited

◆ numComponents

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::numComponents

staticconstexprinherited

Number of components in the fluid system.

◆ numPhases

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::numPhases

staticconstexprinherited

Number of phases in the fluid system.

◆ phase0Idx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::phase0Idx

staticconstexprinherited

index of the first phase

◆ phase1Idx

int Dumux::FluidSystems::H2ON2< Scalar, H2ON2DefaultPolicy<> >::phase1Idx

staticconstexprinherited

index of the second phase

The documentation for this class was generated from the following file:

h2on2kinetic.hh

Description

Public Types

Static Public Member Functions

Static Public Attributes

Member Typedef Documentation

◆ H2O

◆ N2

◆ ParameterCache

◆ Scalar

Member Function Documentation

◆ acentricFactor()

◆ binaryDiffusionCoefficient() [1/2]

◆ binaryDiffusionCoefficient() [2/2]

◆ componentEnthalpy() [1/2]

◆ componentEnthalpy() [2/2]

◆ componentName()

◆ criticalMolarVolume()

◆ criticalPressure()

◆ criticalTemperature()

◆ density() [1/2]

◆ density() [2/2]

◆ diffusionCoefficient() [1/2]

◆ diffusionCoefficient() [2/2]

◆ enthalpy() [1/2]

◆ enthalpy() [2/2]

◆ fugacityCoefficient() [1/2]

◆ fugacityCoefficient() [2/2]

◆ getMainComponent()

◆ heatCapacity() [1/2]

◆ heatCapacity() [2/2]

◆ henry()

◆ init()

◆ isCompressible()

◆ isGas()

◆ isIdealGas()

◆ isIdealMixture()

◆ isMiscible()

◆ isTracerFluidSystem()

◆ kelvinVaporPressure()

◆ molarDensity() [1/2]

◆ molarDensity() [2/2]

◆ molarMass()

◆ phaseName()

◆ thermalConductivity() [1/2]

◆ thermalConductivity() [2/2]

◆ vaporPressure()

◆ viscosity() [1/2]

◆ viscosity() [2/2]

◆ viscosityIsConstant()

Member Data Documentation

◆ comp0Idx

◆ comp1Idx

◆ gasCompIdx

◆ gasPhaseIdx

◆ H2OIdx

◆ liquidCompIdx

◆ liquidPhaseIdx

◆ N2Idx

◆ numComponents

◆ numPhases

◆ phase0Idx

◆ phase1Idx
