An adapter for multi-phase fluid systems to be used with (compositional) one-phase models. More...

#include <dumux/material/fluidsystems/1padapter.hh>

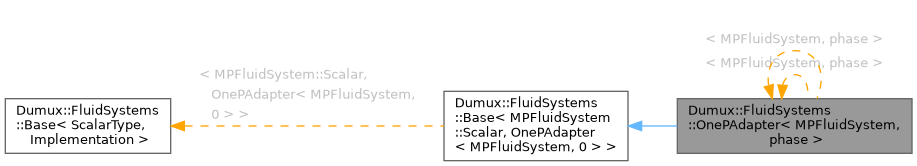

Inheritance diagram for Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >:

Description

template<class MPFluidSystem, int phase = 0>
class Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >

An adapter for multi-phase fluid systems to be used with (compositional) one-phase models.

Template Parameters

MPFluidSystem	the multi-phase fluid system to be adapted
phase	the index of the phase we choose from the multi-phase fluid system

Public Types
using	Scalar = typename Base::Scalar
using	ParameterCache = NullParameterCache
using	MultiPhaseFluidSystem = MPFluidSystem
	export the wrapped MultiPhaseFluidSystem type

Static Public Member Functions
static constexpr int	compIdx (int multiPhaseFluidSystemCompIdx)
	convert a component index of the multi-phase component index to the actual component index
template<class ... Args>
static void	init (Args &&... args)
	Initialize the fluid system's static parameters generically.
static std::string	phaseName (int phaseIdx=0)
	Return the human readable name of a fluid phase.
static std::string	componentName (int compIdx)
	A human readable name for the component.
static std::string	name ()
	A human readable name for the component.
static constexpr bool	isMiscible ()
	There is only one phase, so not mass transfer between phases can occur.
static constexpr bool	isGas (int phaseIdx=0)
	Returns whether the fluid is gaseous.
static constexpr bool	isIdealMixture (int phaseIdx=0)
	Returns true if and only if a fluid phase is assumed to be an ideal mixture.
static constexpr bool	isCompressible (int phaseIdx=0)
	Returns true if the fluid is assumed to be compressible.
static constexpr bool	viscosityIsConstant (int phaseIdx=0)
	Returns true if the fluid viscosity is constant.
static constexpr bool	isIdealGas (int phaseIdx=0)
	Returns true if the fluid is assumed to be an ideal gas.
static Scalar	molarMass (int compIdx)
	The mass in \(\mathrm{[kg]}\) of one mole of the component.
template<class FluidState>
static Scalar	density (const FluidState &fluidState, int phaseIdx=0)
	The density \(\mathrm{[kg/m^3]}\) of the component at a given pressure and temperature.
template<class FluidState>
static Scalar	molarDensity (const FluidState &fluidState, int phaseIdx=0)
	The molar density \(\rho_{mol,\alpha}\) of a fluid phase \(\alpha\) in \(\mathrm{[mol/m^3]}\).
template<class FluidState>
static Scalar	enthalpy (const FluidState &fluidState, int phaseIdx=0)
	Specific enthalpy \(\mathrm{[J/kg]}\) the pure component as a liquid.
template<class FluidState>
static Scalar	componentEnthalpy (const FluidState &fluidState, int phaseIdx, int compIdx)
	Returns the specific enthalpy \(\mathrm{[J/kg]}\) of a component in a specific phase.
template<class FluidState>
static Scalar	viscosity (const FluidState &fluidState, int phaseIdx=0)
	The dynamic liquid viscosity \(\mathrm{[N/m^3*s]}\) of the pure component.
template<class FluidState>
static Scalar	fugacityCoefficient (const FluidState &fluidState, int phaseIdx, int compIdx)
	Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.
template<class FluidState>
static Scalar	diffusionCoefficient (const FluidState &fluidState, int phaseIdx, int compIdx)
	Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).
template<class FluidState>
static Scalar	binaryDiffusionCoefficient (const FluidState &fluidState, int phaseIdx, int compIIdx, int compJIdx)
	Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.
template<class FluidState>
static Scalar	thermalConductivity (const FluidState &fluidState, int phaseIdx=0)
	Thermal conductivity of the fluid \(\mathrm{[W/(m K)]}\).
template<class FluidState>
static Scalar	heatCapacity (const FluidState &fluidState, int phaseIdx=0)
	Specific isobaric heat capacity of the fluid \(\mathrm{[J/(kg K)]}\).
static Scalar	density (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Calculate the density \(\mathrm{[kg/m^3]}\) of a fluid phase.
static Scalar	molarDensity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Calculate the molar density \(\mathrm{[mol/m^3]}\) of a fluid phase.
static Scalar	enthalpy (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Given a phase's composition, temperature, pressure and density, calculate its specific enthalpy \(\mathrm{[J/kg]}\).
static Scalar	viscosity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Calculate the dynamic viscosity of a fluid phase \(\mathrm{[Pa*s]}\).
static Scalar	fugacityCoefficient (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx, int compIdx)
	Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.
static Scalar	diffusionCoefficient (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx, int compIdx)
	Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).
static Scalar	binaryDiffusionCoefficient (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx, int compIIdx, int compJIdx)
	Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.
static Scalar	thermalConductivity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Thermal conductivity \(\lambda_\alpha \) of a fluid phase \(\mathrm{[W/(m K)]}\).
static Scalar	heatCapacity (const FluidState &fluidState, const ParameterCache &paramCache, int phaseIdx)
	Specific isobaric heat capacity \(c_{p,\alpha}\) of a fluid phase \(\mathrm{[J/(kg*K)]}\).
static constexpr bool	isTracerFluidSystem ()
	Some properties of the fluid system.
static constexpr int	getMainComponent (int phaseIdx)
	Get the main component of a given phase if possible.

Static Public Attributes
static constexpr int	multiphaseFluidsystemPhaseIdx = phase
	the index of the phase we choose from the multi-phase fluid system
static constexpr int	numPhases = 1
	number of phases in the fluid system
static constexpr int	numComponents = MultiPhaseFluidSystem::isMiscible() ? MultiPhaseFluidSystem::numComponents : numPhases
static constexpr int	phase0Idx = 0
	number of components has to be the same as in the multi-phase fluid system as the composition needs to be defined

Member Typedef Documentation

◆ MultiPhaseFluidSystem

template<class MPFluidSystem, int phase = 0>

using Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::MultiPhaseFluidSystem = MPFluidSystem

export the wrapped MultiPhaseFluidSystem type

◆ ParameterCache

template<class MPFluidSystem, int phase = 0>

using Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::ParameterCache = NullParameterCache

◆ Scalar

template<class MPFluidSystem, int phase = 0>

using Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::Scalar = typename Base::Scalar

Member Function Documentation

◆ binaryDiffusionCoefficient() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::binaryDiffusionCoefficient	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx,
		int	compIIdx,
		int	compJIdx )

inlinestatic

Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase
compIIdx	Index of the component i
compJIdx	Index of the component j

◆ binaryDiffusionCoefficient() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::binaryDiffusionCoefficient	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	compIIdx,
		int	compJIdx )

inlinestatic

Given a phase's composition, temperature and pressure, return the binary diffusion coefficient \(\mathrm{[m^2/s]}\) for components \(\mathrm{i}\) and \(\mathrm{j}\) in this phase.

Parameters

fluidState	An arbitrary fluid state
phaseIdx	The index of the fluid phase to consider
compIIdx	The index of the component to consider
compJIdx	The index of the component to consider

◆ compIdx()

template<class MPFluidSystem, int phase = 0>

constexpr int Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::compIdx ( int multiPhaseFluidSystemCompIdx )

inlinestaticconstexpr

convert a component index of the multi-phase component index to the actual component index

◆ componentEnthalpy()

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::componentEnthalpy	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	compIdx )

inlinestatic

Returns the specific enthalpy \(\mathrm{[J/kg]}\) of a component in a specific phase.

Parameters

fluidState	An arbitrary fluid state
phaseIdx	The index of the fluid phase to consider
compIdx	The index of the component to consider

◆ componentName()

template<class MPFluidSystem, int phase = 0>

std::string Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::componentName ( int compIdx )

inlinestatic

A human readable name for the component.

Parameters

compIdx The index of the component to consider

◆ density() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::density	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx )

inlinestatic

Calculate the density \(\mathrm{[kg/m^3]}\) of a fluid phase.

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ density() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::density	(	const FluidState &	fluidState,
		int	phaseIdx = 0 )

inlinestatic

The density \(\mathrm{[kg/m^3]}\) of the component at a given pressure and temperature.

◆ diffusionCoefficient() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::diffusionCoefficient	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx,
		int	compIdx )

inlinestatic

Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase
compIdx	Index of the component Molecular diffusion of a component \(\mathrm{\kappa}\) is caused by a gradient of the chemical potential and follows the law

\[ J = - D \mathbf{grad} \mu_\kappa \]

where \(\mathrm{\mu_\kappa}\) is the component's chemical potential, \(\mathrm{D}\) is the diffusion coefficient and \(\mathrm{J}\) is the diffusive flux. \(\mathrm{\mu_\kappa}\) is connected to the component's fugacity \(\mathrm{f_\kappa}\) by the relation

\[ \mu_\kappa = R T_\alpha \mathrm{ln} \frac{f_\kappa}{p_\alpha} \]

where \(\mathrm{p_\alpha}\) and \(\mathrm{T_\alpha}\) are the fluid phase' pressure and temperature.

◆ diffusionCoefficient() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::diffusionCoefficient	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	compIdx )

inlinestatic

Calculate the binary molecular diffusion coefficient for a component in a fluid phase \(\mathrm{[mol^2 * s / (kg*m^3)]}\).

Parameters

fluidState	An arbitrary fluid state
phaseIdx	The index of the fluid phase to consider
compIdx	The index of the component to consider

◆ enthalpy() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::enthalpy	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx )

inlinestatic

Given a phase's composition, temperature, pressure and density, calculate its specific enthalpy \(\mathrm{[J/kg]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ enthalpy() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::enthalpy	(	const FluidState &	fluidState,
		int	phaseIdx = 0 )

inlinestatic

Specific enthalpy \(\mathrm{[J/kg]}\) the pure component as a liquid.

◆ fugacityCoefficient() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::fugacityCoefficient	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx,
		int	compIdx )

inlinestatic

Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.

The fugacity coefficient \(\mathrm{\phi^\kappa_\alpha}\) is connected to the fugacity \(\mathrm{f^\kappa_\alpha}\) and the component's mole fraction \(\mathrm{x^\kappa_\alpha}\) by means of the relation

\[f^\kappa_\alpha = \phi^\kappa_\alpha\;x^\kappa_\alpha\;p_\alpha \]

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase
compIdx	Index of the component

◆ fugacityCoefficient() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::fugacityCoefficient	(	const FluidState &	fluidState,
		int	phaseIdx,
		int	compIdx )

inlinestatic

Calculate the fugacity coefficient \(\mathrm{[Pa]}\) of an individual component in a fluid phase.

Parameters

fluidState	An arbitrary fluid state
phaseIdx	The index of the fluid phase to consider
compIdx	The index of the component to consider

◆ getMainComponent()

constexpr int Dumux::FluidSystems::Base< MPFluidSystem::Scalar, OnePAdapter< MPFluidSystem, 0 > >::getMainComponent ( int phaseIdx )

inlinestaticconstexprinherited

Get the main component of a given phase if possible.

Parameters

phaseIdx The index of the fluid phase to consider

Todo: Unfortunately we currently still have the assumption in some volume variables (e.g. 1pnc, 2pnc) that the main component index of a phase is equal to the phase index of that phase. This means changing this only works if the volume variables are written accordingly.

Note: This only makes sense if this is not a tracer fluid system (then the bulk component is not balanced)

◆ heatCapacity() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::heatCapacity	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx )

inlinestatic

Specific isobaric heat capacity \(c_{p,\alpha}\) of a fluid phase \(\mathrm{[J/(kg*K)]}\).

Parameters

fluidState	represents all relevant thermodynamic quantities of a fluid system
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

Given a fluid state, an up-to-date parameter cache and a phase index, this method computes the isobaric heat capacity \(c_{p,\alpha}\) of the fluid phase. The isobaric heat capacity is defined as the partial derivative of the specific enthalpy \(h_\alpha\) to the fluid pressure \(p_\alpha\):

\( c_{p,\alpha} = \frac{\partial h_\alpha}{\partial p_\alpha} \)

◆ heatCapacity() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::heatCapacity	(	const FluidState &	fluidState,
		int	phaseIdx = 0 )

inlinestatic

Specific isobaric heat capacity of the fluid \(\mathrm{[J/(kg K)]}\).

◆ init()

template<class MPFluidSystem, int phase = 0>

template<class ... Args>

void Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::init ( Args &&... args )

inlinestatic

Initialize the fluid system's static parameters generically.

◆ isCompressible()

template<class MPFluidSystem, int phase = 0>

constexpr bool Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::isCompressible ( int phaseIdx = 0 )

inlinestaticconstexpr

Returns true if the fluid is assumed to be compressible.

◆ isGas()

template<class MPFluidSystem, int phase = 0>

constexpr bool Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::isGas ( int phaseIdx = 0 )

inlinestaticconstexpr

Returns whether the fluid is gaseous.

◆ isIdealGas()

template<class MPFluidSystem, int phase = 0>

constexpr bool Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::isIdealGas ( int phaseIdx = 0 )

inlinestaticconstexpr

Returns true if the fluid is assumed to be an ideal gas.

◆ isIdealMixture()

template<class MPFluidSystem, int phase = 0>

constexpr bool Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::isIdealMixture ( int phaseIdx = 0 )

inlinestaticconstexpr

Returns true if and only if a fluid phase is assumed to be an ideal mixture.

We define an ideal mixture as a fluid phase where the fugacity coefficients of all components times the pressure of the phase are independent on the fluid composition. This assumption is true if only a single component is involved. If you are unsure what this function should return, it is safe to return false. The only damage done will be (slightly) increased computation times in some cases.

Parameters

phaseIdx The index of the fluid phase to consider

◆ isMiscible()

template<class MPFluidSystem, int phase = 0>

constexpr bool Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::isMiscible ( )

inlinestaticconstexpr

There is only one phase, so not mass transfer between phases can occur.

◆ isTracerFluidSystem()

constexpr bool Dumux::FluidSystems::Base< MPFluidSystem::Scalar, OnePAdapter< MPFluidSystem, 0 > >::isTracerFluidSystem ( )

inlinestaticconstexprinherited

Some properties of the fluid system.

If the fluid system only contains tracer components

◆ molarDensity() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::molarDensity	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx )

inlinestatic

Calculate the molar density \(\mathrm{[mol/m^3]}\) of a fluid phase.

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ molarDensity() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::molarDensity	(	const FluidState &	fluidState,
		int	phaseIdx = 0 )

inlinestatic

The molar density \(\rho_{mol,\alpha}\) of a fluid phase \(\alpha\) in \(\mathrm{[mol/m^3]}\).

The molar density is defined by the mass density \(\rho_\alpha\) and the main component molar mass \(M_\alpha\):

\[\rho_{mol,\alpha} = \frac{\rho_\alpha}{M_\alpha} \;.\]

◆ molarMass()

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::molarMass ( int compIdx )

inlinestatic

The mass in \(\mathrm{[kg]}\) of one mole of the component.

◆ name()

template<class MPFluidSystem, int phase = 0>

std::string Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::name ( )

inlinestatic

A human readable name for the component.

◆ phaseName()

template<class MPFluidSystem, int phase = 0>

std::string Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::phaseName ( int phaseIdx = 0 )

inlinestatic

Return the human readable name of a fluid phase.

Parameters

phaseIdx The index of the fluid phase to consider

◆ thermalConductivity() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::thermalConductivity	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx )

inlinestatic

Thermal conductivity \(\lambda_\alpha \) of a fluid phase \(\mathrm{[W/(m K)]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ thermalConductivity() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::thermalConductivity	(	const FluidState &	fluidState,
		int	phaseIdx = 0 )

inlinestatic

Thermal conductivity of the fluid \(\mathrm{[W/(m K)]}\).

◆ viscosity() [1/2]

template<class MPFluidSystem, int phase = 0>

Scalar Dumux::FluidSystems::Base< typename MPFluidSystem::Scalar, ThisType >::viscosity	(	const FluidState &	fluidState,
		const ParameterCache &	paramCache,
		int	phaseIdx )

inlinestatic

Calculate the dynamic viscosity of a fluid phase \(\mathrm{[Pa*s]}\).

Parameters

fluidState	The fluid state
paramCache	mutable parameters
phaseIdx	Index of the fluid phase

◆ viscosity() [2/2]

template<class MPFluidSystem, int phase = 0>

template<class FluidState>

Scalar Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::viscosity	(	const FluidState &	fluidState,
		int	phaseIdx = 0 )

inlinestatic

The dynamic liquid viscosity \(\mathrm{[N/m^3*s]}\) of the pure component.

◆ viscosityIsConstant()

template<class MPFluidSystem, int phase = 0>

constexpr bool Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::viscosityIsConstant ( int phaseIdx = 0 )

inlinestaticconstexpr

Returns true if the fluid viscosity is constant.

Member Data Documentation

◆ multiphaseFluidsystemPhaseIdx

template<class MPFluidSystem, int phase = 0>

int Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::multiphaseFluidsystemPhaseIdx = phase

staticconstexpr

the index of the phase we choose from the multi-phase fluid system

◆ numComponents

template<class MPFluidSystem, int phase = 0>

int Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::numComponents = MultiPhaseFluidSystem::isMiscible() ? MultiPhaseFluidSystem::numComponents : numPhases

staticconstexpr

for compositional models, the number of components has to be the same as in the multi-phase fluid system as the composition needs to be defined, while for non-compositional models, the number of components must equal the number of phases (1 in this case)

◆ numPhases

template<class MPFluidSystem, int phase = 0>

int Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::numPhases = 1

staticconstexpr

number of phases in the fluid system

◆ phase0Idx

template<class MPFluidSystem, int phase = 0>

int Dumux::FluidSystems::OnePAdapter< MPFluidSystem, phase >::phase0Idx = 0

staticconstexpr

number of components has to be the same as in the multi-phase fluid system as the composition needs to be defined

index of the only phase

The documentation for this class was generated from the following file:

1padapter.hh

Description

Public Types

Static Public Member Functions

Static Public Attributes

Member Typedef Documentation

◆ MultiPhaseFluidSystem

◆ ParameterCache

◆ Scalar

Member Function Documentation

◆ binaryDiffusionCoefficient() [1/2]

◆ binaryDiffusionCoefficient() [2/2]

◆ compIdx()

◆ componentEnthalpy()

◆ componentName()

◆ density() [1/2]

◆ density() [2/2]

◆ diffusionCoefficient() [1/2]

◆ diffusionCoefficient() [2/2]

◆ enthalpy() [1/2]

◆ enthalpy() [2/2]

◆ fugacityCoefficient() [1/2]

◆ fugacityCoefficient() [2/2]

◆ getMainComponent()

◆ heatCapacity() [1/2]

◆ heatCapacity() [2/2]

◆ init()

◆ isCompressible()

◆ isGas()

◆ isIdealGas()

◆ isIdealMixture()

◆ isMiscible()

◆ isTracerFluidSystem()

◆ molarDensity() [1/2]

◆ molarDensity() [2/2]

◆ molarMass()

◆ name()

◆ phaseName()

◆ thermalConductivity() [1/2]

◆ thermalConductivity() [2/2]

◆ viscosity() [1/2]

◆ viscosity() [2/2]

◆ viscosityIsConstant()

Member Data Documentation

◆ multiphaseFluidsystemPhaseIdx

◆ numComponents

◆ numPhases

◆ phase0Idx
