Dumux::LinearSolver Class Reference

Base class for linear solvers. More...

#include <dumux/linear/solver.hh>

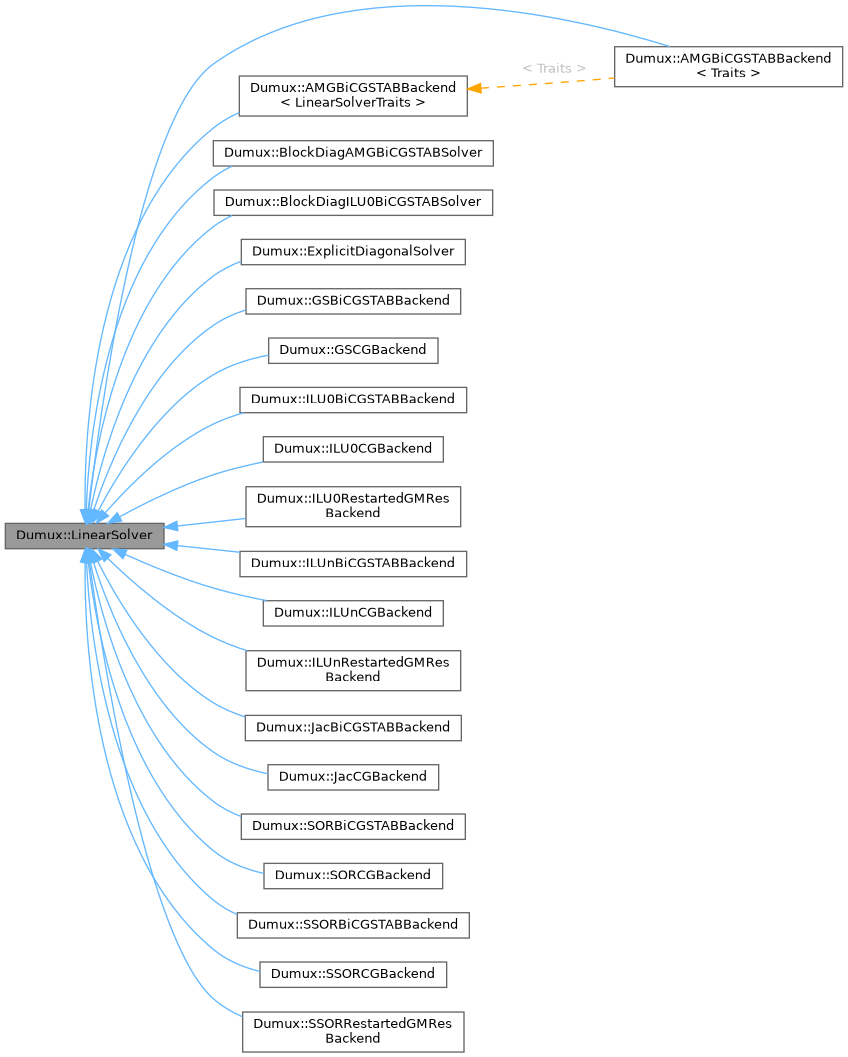

Inheritance diagram for Dumux::LinearSolver:

Description

Base class for linear solvers.

Public Types
using	Scalar = double

Public Member Functions
	LinearSolver (const std::string &paramGroup="")
	Contruct the solver.
template<class Matrix, class Vector>
bool	solve (const Matrix &A, Vector &x, const Vector &b)
	Solve the linear system Ax = b.
std::string	name () const
	the name of the linear solver
const std::string &	paramGroup () const
	the parameter group for getting parameter from the parameter tree
int	verbosity () const
	the verbosity level
void	setVerbosity (int v)
	set the verbosity level
int	maxIter () const
	the maximum number of linear solver iterations
void	setMaxIter (int i)
	set the maximum number of linear solver iterations
double	residReduction () const
	the linear solver residual reduction
void	setResidualReduction (double r)
	set the linear solver residual reduction
double	relaxation () const
	the linear solver relaxation factor
void	setRelaxation (double r)
	set the linear solver relaxation factor
int	precondIter () const
	the number of preconditioner iterations
void	setPrecondIter (int i)
	set the number of preconditioner iterations
int	precondVerbosity () const
	the preconditioner verbosity
void	setPrecondVerbosity (int verbosityLevel)
	set the preconditioner verbosity

Member Typedef Documentation

Scalar

using Dumux::LinearSolver::Scalar = double

export Scalar type (might be needed to set parameters from output) TODO: Do we need this?

Constructor & Destructor Documentation

LinearSolver()

Dumux::LinearSolver::LinearSolver ( const std::string & paramGroup = "" )

inline

Contruct the solver.

Note

Read parameters from the parameter tree

• LinearSolver.Verbosity the verbosity level of the linear solver
• LinearSolver.MaxIterations the maximum iterations of the solver
• LinearSolver.ResidualReduction the residual reduction threshold, i.e. stopping criterion
• LinearSolver.Preconditioner.Relaxation precondition relaxation
• LinearSolver.Preconditioner.Iterations the number of preconditioner iterations
• LinearSolver.Preconditioner.Verbosity the preconditioner verbosity level

Member Function Documentation

maxIter()

int Dumux::LinearSolver::maxIter ( ) const

inline

the maximum number of linear solver iterations

name()

std::string Dumux::LinearSolver::name ( ) const

inline

the name of the linear solver

paramGroup()

const std::string & Dumux::LinearSolver::paramGroup ( ) const

inline

the parameter group for getting parameter from the parameter tree

precondIter()

int Dumux::LinearSolver::precondIter ( ) const

inline

the number of preconditioner iterations

precondVerbosity()

int Dumux::LinearSolver::precondVerbosity ( ) const

inline

the preconditioner verbosity

relaxation()

double Dumux::LinearSolver::relaxation ( ) const

inline

the linear solver relaxation factor

residReduction()

double Dumux::LinearSolver::residReduction ( ) const

inline

the linear solver residual reduction

setMaxIter()

void Dumux::LinearSolver::setMaxIter ( int i )

inline

set the maximum number of linear solver iterations

setPrecondIter()

void Dumux::LinearSolver::setPrecondIter ( int i )

inline

set the number of preconditioner iterations

setPrecondVerbosity()

void Dumux::LinearSolver::setPrecondVerbosity ( int verbosityLevel )

inline

set the preconditioner verbosity

setRelaxation()

void Dumux::LinearSolver::setRelaxation ( double r )

inline

set the linear solver relaxation factor

setResidualReduction()

void Dumux::LinearSolver::setResidualReduction ( double r )

inline

set the linear solver residual reduction

setVerbosity()

void Dumux::LinearSolver::setVerbosity ( int v )

inline

set the verbosity level

solve()

template<class Matrix, class Vector>

bool Dumux::LinearSolver::solve ( const Matrix & A, Vector & x, const Vector & b )

inline

Solve the linear system Ax = b.

Note

This has to be overloaded by the actual solver

verbosity()

int Dumux::LinearSolver::verbosity ( ) const

inline

the verbosity level

---

The documentation for this class was generated from the following file:

• solver.hh
