Dumux::VelocityOutput< GridVariables > Class Template Reference

Velocity output for implicit (porous media) models. More...

#include <dumux/io/velocityoutput.hh>

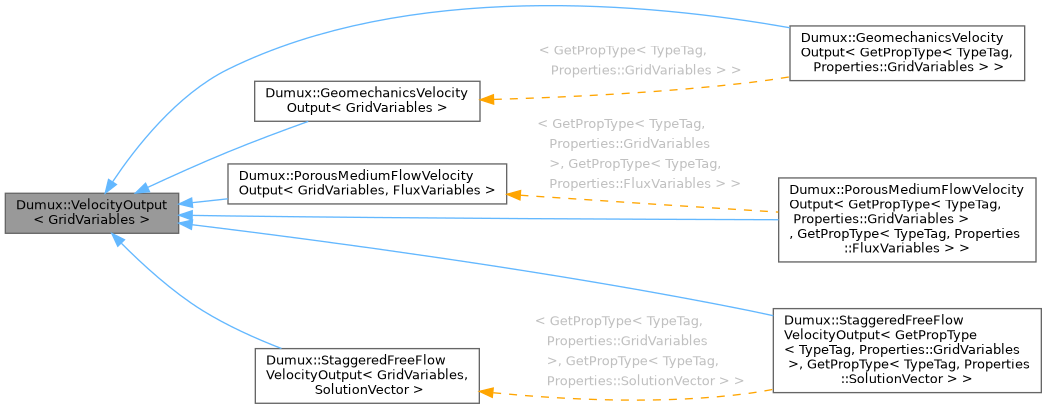

Inheritance diagram for Dumux::VelocityOutput< GridVariables >:

Description

template<class GridVariables>
class Dumux::VelocityOutput< GridVariables >

Velocity output for implicit (porous media) models.

Public Types
using	VelocityVector = std::vector<Dune::FieldVector<Scalar, dimWorld>>

Public Member Functions
	VelocityOutput ()=default
	Default constructor.
virtual	~VelocityOutput ()
	virtual destructor
virtual bool	enableOutput () const
	returns whether or not velocity output is enabled
virtual std::string	phaseName (int phaseIdx) const
	returns the phase name of a given phase index
virtual int	numFluidPhases () const
	returns the number of phases
virtual void	calculateVelocity (VelocityVector &velocity, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const ElementFluxVarsCache &elemFluxVarsCache, int phaseIdx) const

Member Typedef Documentation

VelocityVector

template<class GridVariables>

using Dumux::VelocityOutput< GridVariables >::VelocityVector = std::vector<Dune::FieldVector<Scalar, dimWorld>>

Constructor & Destructor Documentation

VelocityOutput()

template<class GridVariables>

Dumux::VelocityOutput< GridVariables >::VelocityOutput ( )

default

Default constructor.

~VelocityOutput()

template<class GridVariables>

virtual Dumux::VelocityOutput< GridVariables >::~VelocityOutput ( )

inlinevirtual

virtual destructor

Member Function Documentation

calculateVelocity()

template<class GridVariables>

virtual void Dumux::VelocityOutput< GridVariables >::calculateVelocity ( VelocityVector & velocity, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const ElementFluxVarsCache & elemFluxVarsCache, int phaseIdx ) const

inlinevirtual

Calculate the velocities for the scvs in the element We assume the local containers to be bound to the complete stencil

enableOutput()

template<class GridVariables>

virtual bool Dumux::VelocityOutput< GridVariables >::enableOutput ( ) const

inlinevirtual

returns whether or not velocity output is enabled

Reimplemented in Dumux::GeomechanicsVelocityOutput< GridVariables >, Dumux::GeomechanicsVelocityOutput< GetPropType< TypeTag, Properties::GridVariables > >, Dumux::PorousMediumFlowVelocityOutput< GridVariables, FluxVariables >, Dumux::PorousMediumFlowVelocityOutput< GetPropType< TypeTag, Properties::GridVariables >, GetPropType< TypeTag, Properties::FluxVariables > >, Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >, and Dumux::StaggeredFreeFlowVelocityOutput< GetPropType< TypeTag, Properties::GridVariables >, GetPropType< TypeTag, Properties::SolutionVector > >.

numFluidPhases()

template<class GridVariables>

virtual int Dumux::VelocityOutput< GridVariables >::numFluidPhases ( ) const

inlinevirtual

returns the number of phases

Reimplemented in Dumux::PorousMediumFlowVelocityOutput< GridVariables, FluxVariables >, Dumux::PorousMediumFlowVelocityOutput< GetPropType< TypeTag, Properties::GridVariables >, GetPropType< TypeTag, Properties::FluxVariables > >, Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >, and Dumux::StaggeredFreeFlowVelocityOutput< GetPropType< TypeTag, Properties::GridVariables >, GetPropType< TypeTag, Properties::SolutionVector > >.

phaseName()

template<class GridVariables>

virtual std::string Dumux::VelocityOutput< GridVariables >::phaseName ( int phaseIdx ) const

inlinevirtual

returns the phase name of a given phase index

Reimplemented in Dumux::PorousMediumFlowVelocityOutput< GridVariables, FluxVariables >, Dumux::PorousMediumFlowVelocityOutput< GetPropType< TypeTag, Properties::GridVariables >, GetPropType< TypeTag, Properties::FluxVariables > >, Dumux::StaggeredFreeFlowVelocityOutput< GridVariables, SolutionVector >, and Dumux::StaggeredFreeFlowVelocityOutput< GetPropType< TypeTag, Properties::GridVariables >, GetPropType< TypeTag, Properties::SolutionVector > >.

---

The documentation for this class was generated from the following file:

• io/velocityoutput.hh
