Dumux::RANSTwoEqIndices< dimension, numComponents > Struct Template Reference

The common indices for isothermal two-equation RANS models. More...

#include <dumux/freeflow/rans/twoeq/indices.hh>

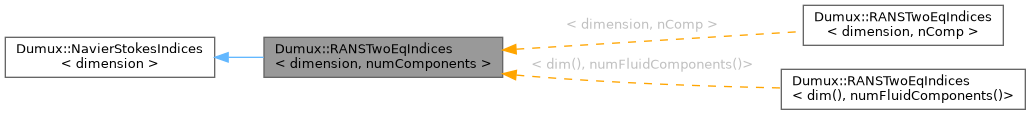

Inheritance diagram for Dumux::RANSTwoEqIndices< dimension, numComponents >:

Description

template<int dimension, int numComponents>
struct Dumux::RANSTwoEqIndices< dimension, numComponents >

The common indices for isothermal two-equation RANS models.

Template Parameters

dimension	The dimension of the problem
numComponents	The number of considered transported components

Static Public Member Functions
static constexpr int	velocity (int dirIdx)
	Index of the velocity in a solution vector given a certain direction.

Static Public Attributes
static constexpr auto	turbulentKineticEnergyEqIdx = dimension + numComponents
static constexpr auto	turbulentKineticEnergyIdx = turbulentKineticEnergyEqIdx
static constexpr auto	dissipationEqIdx = turbulentKineticEnergyEqIdx + 1
static constexpr auto	dissipationIdx = dissipationEqIdx
static constexpr int	dimXIdx = 0
	Index of the x-component of a vector of size dim.
static constexpr int	dimYIdx = 1
	Index of the y-component of a vector of size dim.
static constexpr int	dimZIdx = 2
	Index of the z-component of a vector of size dim.
static constexpr int	conti0EqIdx = dimension
	Index of the total mass balance equation.
static constexpr int	pressureIdx = conti0EqIdx
	Index of the pressure in a solution vector.
static constexpr auto	dim = dimension
static constexpr int	momentumXBalanceIdx = 0
	Index of the momentum balance equation.
static constexpr int	momentumYBalanceIdx = 1
	Index of the momentum balance equation.
static constexpr int	momentumZBalanceIdx = 2
	Index of the momentum balance equation.
static constexpr int	velocityXIdx = 0
	Index of the velocity in a solution vector.
static constexpr int	velocityYIdx = 1
	Index of the velocity in a solution vector.
static constexpr int	velocityZIdx = 2
	Index of the velocity in a solution vector.

Member Function Documentation

velocity()

template<int dimension>

constexpr int Dumux::NavierStokesIndices< dimension >::velocity ( int dirIdx )

inlinestaticconstexprinherited

Index of the velocity in a solution vector given a certain direction.

Parameters

dirIdx

The index of the direction.

Member Data Documentation

conti0EqIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::conti0EqIdx = dimension

staticconstexprinherited

Index of the total mass balance equation.

dim

template<int dimension>

auto Dumux::NavierStokesIndices< dimension >::dim = dimension

staticconstexprinherited

dimXIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::dimXIdx = 0

staticconstexprinherited

Index of the x-component of a vector of size dim.

dimYIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::dimYIdx = 1

staticconstexprinherited

Index of the y-component of a vector of size dim.

dimZIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::dimZIdx = 2

staticconstexprinherited

Index of the z-component of a vector of size dim.

dissipationEqIdx

template<int dimension, int numComponents>

auto Dumux::RANSTwoEqIndices< dimension, numComponents >::dissipationEqIdx = turbulentKineticEnergyEqIdx + 1

staticconstexpr

dissipationIdx

template<int dimension, int numComponents>

auto Dumux::RANSTwoEqIndices< dimension, numComponents >::dissipationIdx = dissipationEqIdx

staticconstexpr

momentumXBalanceIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::momentumXBalanceIdx = 0

staticconstexprinherited

Index of the momentum balance equation.

momentumYBalanceIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::momentumYBalanceIdx = 1

staticconstexprinherited

Index of the momentum balance equation.

momentumZBalanceIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::momentumZBalanceIdx = 2

staticconstexprinherited

Index of the momentum balance equation.

pressureIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::pressureIdx = conti0EqIdx

staticconstexprinherited

Index of the pressure in a solution vector.

turbulentKineticEnergyEqIdx

template<int dimension, int numComponents>

auto Dumux::RANSTwoEqIndices< dimension, numComponents >::turbulentKineticEnergyEqIdx = dimension + numComponents

staticconstexpr

turbulentKineticEnergyIdx

template<int dimension, int numComponents>

auto Dumux::RANSTwoEqIndices< dimension, numComponents >::turbulentKineticEnergyIdx = turbulentKineticEnergyEqIdx

staticconstexpr

velocityXIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::velocityXIdx = 0

staticconstexprinherited

Index of the velocity in a solution vector.

velocityYIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::velocityYIdx = 1

staticconstexprinherited

Index of the velocity in a solution vector.

velocityZIdx

template<int dimension>

int Dumux::NavierStokesIndices< dimension >::velocityZIdx = 2

staticconstexprinherited

Index of the velocity in a solution vector.

---

The documentation for this struct was generated from the following file:

• freeflow/rans/twoeq/indices.hh
