Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::box, referenceSystem > Class Template Reference

Specialization of Fick's Law for the box method. More...

#include <dumux/flux/box/fickslaw.hh>

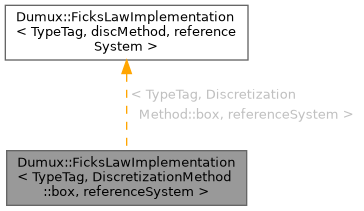

Inheritance diagram for Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::box, referenceSystem >:

Description

template<class TypeTag, ReferenceSystemFormulation referenceSystem>
class Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::box, referenceSystem >

Specialization of Fick's Law for the box method.

Public Types
using	DiffusionCoefficientsContainer = FickianDiffusionCoefficients<Scalar, numPhases, numComponents>

Static Public Member Functions
static constexpr ReferenceSystemFormulation	referenceSystemFormulation ()
static ComponentFluxVector	flux (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, const int phaseIdx, const ElementFluxVariablesCache &elemFluxVarsCache)
static std::array< std::vector< Scalar >, numComponents >	calculateTransmissibilities (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, const FluxVarCache &fluxVarCache, const int phaseIdx)

Member Typedef Documentation

DiffusionCoefficientsContainer

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

using Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::box, referenceSystem >::DiffusionCoefficientsContainer = FickianDiffusionCoefficients<Scalar, numPhases, numComponents>

Member Function Documentation

calculateTransmissibilities()

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

std::array< std::vector< Scalar >, numComponents > Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::box, referenceSystem >::calculateTransmissibilities ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, const FluxVarCache & fluxVarCache, const int phaseIdx )

inlinestatic

flux()

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

ComponentFluxVector Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::box, referenceSystem >::flux ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, const int phaseIdx, const ElementFluxVariablesCache & elemFluxVarsCache )

inlinestatic

referenceSystemFormulation()

template<class TypeTag, ReferenceSystemFormulation referenceSystem>

constexpr ReferenceSystemFormulation Dumux::FicksLawImplementation< TypeTag, DiscretizationMethod::box, referenceSystem >::referenceSystemFormulation ( )

inlinestaticconstexpr

---

The documentation for this class was generated from the following file:

• flux/box/fickslaw.hh
