Dumux::BoxFluxVariablesCache< Scalar, GridGeometry > Class Template Reference

Flux variables cache class for the box scheme. For the box scheme, this class does not contain any physics-/process-dependent data. It solely stores disretization-/grid-related data. More...

#include <dumux/discretization/box/fluxvariablescache.hh>

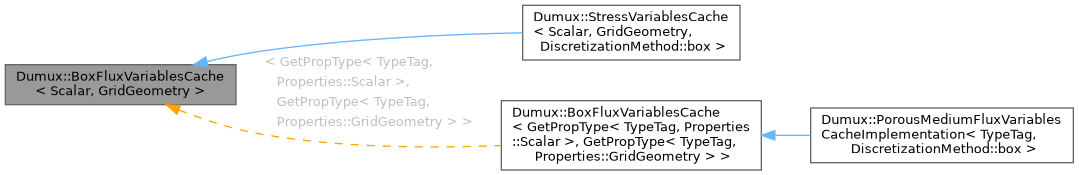

Inheritance diagram for Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >:

Description

template<class Scalar, class GridGeometry>
class Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >

Flux variables cache class for the box scheme. For the box scheme, this class does not contain any physics-/process-dependent data. It solely stores disretization-/grid-related data.

Public Member Functions
template<class Problem, class ElementVolumeVariables>
void	update (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf)
	update the cache for an scvf
template<class Problem, class ElementVolumeVariables>
void	update (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const GlobalPosition &globalPos)
	update the cache for a given global position
const GlobalPosition &	ipGlobal () const
	returns the global position for which this cache has been updated
const std::vector< ShapeJacobian > &	shapeJacobian () const
	returns the shape function gradients in local coordinates at the integration point
const std::vector< ShapeValue > &	shapeValues () const
	returns the shape function values at the integration point
const JacobianInverseTransposed &	jacInvT () const
	returns inverse transposed jacobian at the integration point
const GlobalPosition &	gradN (unsigned int scvIdxInElement) const
	returns the shape function gradients in global coordinates at the integration point

Member Function Documentation

gradN()

template<class Scalar, class GridGeometry>

const GlobalPosition & Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >::gradN ( unsigned int scvIdxInElement ) const

inline

returns the shape function gradients in global coordinates at the integration point

ipGlobal()

template<class Scalar, class GridGeometry>

const GlobalPosition & Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >::ipGlobal ( ) const

inline

returns the global position for which this cache has been updated

jacInvT()

template<class Scalar, class GridGeometry>

const JacobianInverseTransposed & Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >::jacInvT ( ) const

inline

returns inverse transposed jacobian at the integration point

shapeJacobian()

template<class Scalar, class GridGeometry>

const std::vector< ShapeJacobian > & Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >::shapeJacobian ( ) const

inline

returns the shape function gradients in local coordinates at the integration point

shapeValues()

template<class Scalar, class GridGeometry>

const std::vector< ShapeValue > & Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >::shapeValues ( ) const

inline

returns the shape function values at the integration point

update() [1/2]

template<class Scalar, class GridGeometry>

template<class Problem, class ElementVolumeVariables>

void Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >::update ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const GlobalPosition & globalPos )

inline

update the cache for a given global position

update() [2/2]

template<class Scalar, class GridGeometry>

template<class Problem, class ElementVolumeVariables>

void Dumux::BoxFluxVariablesCache< Scalar, GridGeometry >::update ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf )

inline

update the cache for an scvf

---

The documentation for this class was generated from the following file:

• discretization/box/fluxvariablescache.hh
