Dumux::BoxElementBoundaryTypes< BTypes > Class Template Reference

This class stores an array of BoundaryTypes objects. More...

#include <dumux/discretization/box/elementboundarytypes.hh>

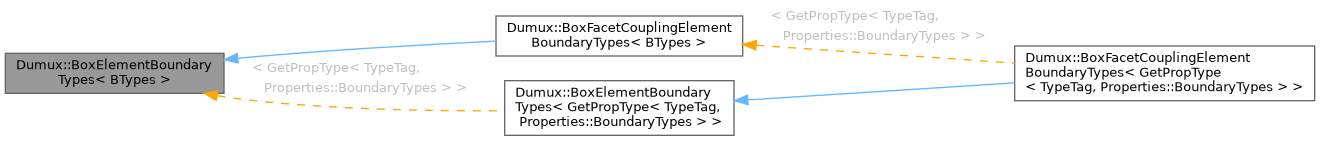

Inheritance diagram for Dumux::BoxElementBoundaryTypes< BTypes >:

Description

template<class BTypes>
class Dumux::BoxElementBoundaryTypes< BTypes >

This class stores an array of BoundaryTypes objects.

Public Types
using	BoundaryTypes = BTypes

Public Member Functions
template<class Problem, class Element, class FVElementGeometry>
void	update (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry)
	Update the boundary types for all vertices of an element.
bool	hasDirichlet () const
	Returns whether the element has a vertex which contains a Dirichlet value.
bool	hasNeumann () const
	Returns whether the element potentially features a Neumann boundary segment.
bool	hasOutflow () const
	Returns whether the element potentially features an outflow boundary segment.
const BoundaryTypes &	operator[] (std::size_t i) const

Protected Attributes
std::vector< BoundaryTypes >	vertexBCTypes_
bool	hasDirichlet_ = false
bool	hasNeumann_ = false
bool	hasOutflow_ = false

Member Typedef Documentation

BoundaryTypes

template<class BTypes>

using Dumux::BoxElementBoundaryTypes< BTypes >::BoundaryTypes = BTypes

Member Function Documentation

hasDirichlet()

template<class BTypes>

bool Dumux::BoxElementBoundaryTypes< BTypes >::hasDirichlet ( ) const

inline

Returns whether the element has a vertex which contains a Dirichlet value.

hasNeumann()

template<class BTypes>

bool Dumux::BoxElementBoundaryTypes< BTypes >::hasNeumann ( ) const

inline

Returns whether the element potentially features a Neumann boundary segment.

hasOutflow()

template<class BTypes>

bool Dumux::BoxElementBoundaryTypes< BTypes >::hasOutflow ( ) const

inline

Returns whether the element potentially features an outflow boundary segment.

operator[]()

template<class BTypes>

const BoundaryTypes & Dumux::BoxElementBoundaryTypes< BTypes >::operator[] ( std::size_t i ) const

inline

update()

template<class BTypes>

template<class Problem, class Element, class FVElementGeometry>

void Dumux::BoxElementBoundaryTypes< BTypes >::update ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry )

inline

Update the boundary types for all vertices of an element.

Parameters

problem	The problem object which needs to be simulated
element	The DUNE Codim<0> entity for which the boundary types should be collected
fvGeometry	The element's finite volume geometry

Member Data Documentation

hasDirichlet_

template<class BTypes>

bool Dumux::BoxElementBoundaryTypes< BTypes >::hasDirichlet_ = false

protected

hasNeumann_

template<class BTypes>

bool Dumux::BoxElementBoundaryTypes< BTypes >::hasNeumann_ = false

protected

hasOutflow_

template<class BTypes>

bool Dumux::BoxElementBoundaryTypes< BTypes >::hasOutflow_ = false

protected

vertexBCTypes_

template<class BTypes>

std::vector< BoundaryTypes > Dumux::BoxElementBoundaryTypes< BTypes >::vertexBCTypes_

protected

---

The documentation for this class was generated from the following file:

• discretization/box/elementboundarytypes.hh
