Dumux::SolDependentPointSource< TypeTag > Class Template Reference

A point source class for time dependent point sources. More...

#include <dumux/common/pointsource.hh>

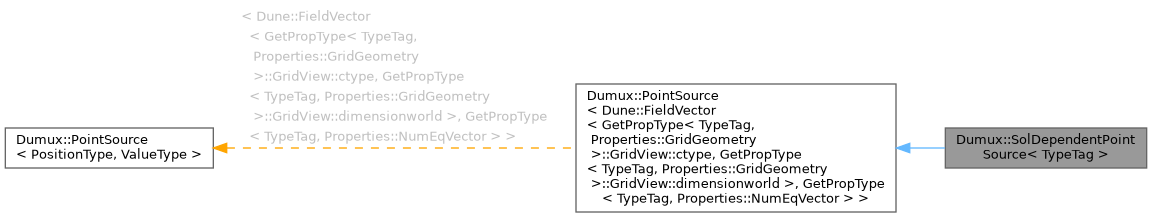

Inheritance diagram for Dumux::SolDependentPointSource< TypeTag >:

Description

template<class TypeTag>
class Dumux::SolDependentPointSource< TypeTag >

A point source class for time dependent point sources.

Public Types
using	Values
	Export the value type.

Public Member Functions
	SolDependentPointSource (GlobalPosition pos, ValueFunction valueFunction)
	Constructor for sol dependent point sources, when there is no.
void	update (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolume &scv)
	an update function called before adding the value
SolDependentPointSource &	operator= (const SourceValues &values)
	Convenience = operator overload modifying only the values.
SolDependentPointSource &	operator= (Scalar s)
	Convenience = operator overload modifying only the values.
PointSource &	operator+= (Scalar s)
	Convenience += operator overload modifying only the values.
PointSource &	operator-= (Scalar s)
	Convenience -= operator overload modifying only the values.
PointSource &	operator*= (Scalar s)
	Convenience *= operator overload modifying only the values.
PointSource &	operator/= (Scalar s)
	Convenience /= operator overload modifying only the values.
Values	values () const
	return the source values
const GlobalPosition &	position () const
	return the source position
void	update (const Problem &problem, const typename FVElementGeometry::GridGeometry::GridView::template Codim< 0 >::Entity &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const typename FVElementGeometry::SubControlVolume &scv)
	an update function called before adding the value
void	setEmbeddings (std::size_t embeddings)
	set the number of embeddings for this point source
std::size_t	embeddings () const
	get the number of embeddings for this point source

Protected Attributes
Values	values_
	value of the point source for each equation

Member Typedef Documentation

Values

using Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::Values

inherited

Export the value type.

Constructor & Destructor Documentation

SolDependentPointSource()

template<class TypeTag>

Dumux::SolDependentPointSource< TypeTag >::SolDependentPointSource ( GlobalPosition pos, ValueFunction valueFunction )

inline

Constructor for sol dependent point sources, when there is no.

Member Function Documentation

embeddings()

std::size_t Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::embeddings ( ) const

inlineinherited

get the number of embeddings for this point source

Note

A point source might be located on the intersection between several scvs. If so, there are point sources for every neighboring scv with the same position. embeddings returns the number of neighboring scvs. Example: If I want to inject 1kg/s at a location that is on the inner face of an scv the point source exists in both scvs. Both have a value of 1kg/s. We then divide the value by the number of embeddings to not inject 2kg/s but 1kg/s.

This division is done in the problem.scvPointSources() if this behaviour is not explicitly changed by e.g. overloading this function in the problem implementation.

operator*=()

PointSource & Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::operator*= ( Scalar s )

inlineinherited

Convenience *= operator overload modifying only the values.

operator+=()

PointSource & Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::operator+= ( Scalar s )

inlineinherited

Convenience += operator overload modifying only the values.

operator-=()

PointSource & Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::operator-= ( Scalar s )

inlineinherited

Convenience -= operator overload modifying only the values.

operator/=()

PointSource & Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::operator/= ( Scalar s )

inlineinherited

Convenience /= operator overload modifying only the values.

operator=() [1/2]

template<class TypeTag>

SolDependentPointSource & Dumux::SolDependentPointSource< TypeTag >::operator= ( const SourceValues & values )

inline

Convenience = operator overload modifying only the values.

operator=() [2/2]

template<class TypeTag>

SolDependentPointSource & Dumux::SolDependentPointSource< TypeTag >::operator= ( Scalar s )

inline

Convenience = operator overload modifying only the values.

position()

const GlobalPosition & Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::position ( ) const

inlineinherited

return the source position

setEmbeddings()

void Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::setEmbeddings ( std::size_t embeddings )

inlineinherited

set the number of embeddings for this point source

update() [1/2]

void Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::update ( const Problem & problem, const typename FVElementGeometry::GridGeometry::GridView::template Codim< 0 >::Entity & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const typename FVElementGeometry::SubControlVolume & scv )

inlineinherited

an update function called before adding the value

update() [2/2]

template<class TypeTag>

void Dumux::SolDependentPointSource< TypeTag >::update ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolume & scv )

inline

an update function called before adding the value

values()

Values Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::values ( ) const

inlineinherited

return the source values

Member Data Documentation

values_

Values Dumux::PointSource< Dune::FieldVector< GetPropType< TypeTag, Properties::GridGeometry >::GridView::ctype, GetPropType< TypeTag, Properties::GridGeometry >::GridView::dimensionworld >, GetPropType< TypeTag, Properties::NumEqVector > >::values_

protectedinherited

value of the point source for each equation

---

The documentation for this class was generated from the following file:

• pointsource.hh
