Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false > Class Template Reference

Specialization of the CCTpfaDarcysLaw grids where dim=dimWorld. More...

#include <dumux/multidomain/facet/cellcentered/tpfa/darcyslaw.hh>

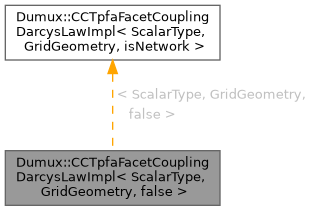

Inheritance diagram for Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >:

Description

template<class ScalarType, class GridGeometry>
class Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >

Specialization of the CCTpfaDarcysLaw grids where dim=dimWorld.

Public Types
using	Scalar = ScalarType
	state the scalar type of the law
using	Cache = CCTpfaFacetCouplingDarcysLawCache<ThisType, GridGeometry, false>
	export the type for the corresponding cache
using	TijContainer = typename Cache::AdvectionTransmissibilityContainer
	export the type used to store transmissibilities

Static Public Member Functions
template<class Problem, class ElementVolumeVariables, class ElementFluxVarsCache>
static Scalar	flux (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, int phaseIdx, const ElementFluxVarsCache &elemFluxVarsCache)
	Compute the advective flux.
template<class Problem, class ElementVolumeVariables>
static TijContainer	calculateTransmissibility (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf)
template<class Problem, class ElementVolumeVariables>
static TijContainer	calculateTransmissibility (const Problem &problem, const Element &element, const FVElementGeometry &fvGeometry, const ElementVolumeVariables &elemVolVars, const SubControlVolumeFace &scvf, typename Cache::GravityCoefficients &g)

Static Public Attributes
static const DiscretizationMethod	discMethod = DiscretizationMethod::cctpfa
	export the discretization method this implementation belongs to

Member Typedef Documentation

Cache

template<class ScalarType, class GridGeometry>

using Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >::Cache = CCTpfaFacetCouplingDarcysLawCache<ThisType, GridGeometry, false>

export the type for the corresponding cache

Scalar

template<class ScalarType, class GridGeometry>

using Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >::Scalar = ScalarType

state the scalar type of the law

TijContainer

template<class ScalarType, class GridGeometry>

using Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >::TijContainer = typename Cache::AdvectionTransmissibilityContainer

export the type used to store transmissibilities

Member Function Documentation

calculateTransmissibility() [1/2]

template<class ScalarType, class GridGeometry>

template<class Problem, class ElementVolumeVariables>

TijContainer Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >::calculateTransmissibility ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf )

inlinestatic

calculateTransmissibility() [2/2]

template<class ScalarType, class GridGeometry>

template<class Problem, class ElementVolumeVariables>

TijContainer Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >::calculateTransmissibility ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, typename Cache::GravityCoefficients & g )

inlinestatic

use the standard darcy's law and only compute one transmissibility

xi factor for the coupling conditions

flux()

template<class ScalarType, class GridGeometry>

template<class Problem, class ElementVolumeVariables, class ElementFluxVarsCache>

Scalar Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >::flux ( const Problem & problem, const Element & element, const FVElementGeometry & fvGeometry, const ElementVolumeVariables & elemVolVars, const SubControlVolumeFace & scvf, int phaseIdx, const ElementFluxVarsCache & elemFluxVarsCache )

inlinestatic

Compute the advective flux.

Member Data Documentation

discMethod

template<class ScalarType, class GridGeometry>

const DiscretizationMethod Dumux::CCTpfaFacetCouplingDarcysLawImpl< ScalarType, GridGeometry, false >::discMethod = DiscretizationMethod::cctpfa

static

export the discretization method this implementation belongs to

---

The documentation for this class was generated from the following file:

• multidomain/facet/cellcentered/tpfa/darcyslaw.hh
