Dumux::ThermalConductivitySimpleFluidLumping< Scalar, numEnergyEquationsFluid > Class Template Reference

Relation for the saturation-dependent effective thermal conductivity. More...

#include <dumux/material/fluidmatrixinteractions/2p/thermalconductivitysimplefluidlumping.hh>

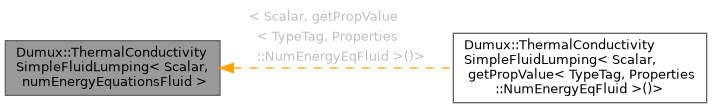

Inheritance diagram for Dumux::ThermalConductivitySimpleFluidLumping< Scalar, numEnergyEquationsFluid >:

Description

template<class Scalar, int numEnergyEquationsFluid>
class Dumux::ThermalConductivitySimpleFluidLumping< Scalar, numEnergyEquationsFluid >

Relation for the saturation-dependent effective thermal conductivity.

Todo

This shouldn't depend on TypeTag!!

Static Public Member Functions
template<class VolumeVariables, class SpatialParams, class Element, class FVGeometry>
static Scalar	effectiveThermalConductivity (const VolumeVariables &volVars, const SpatialParams &spatialParams, const Element &element, const FVGeometry &fvGeometry, const typename FVGeometry::SubControlVolume &scv)
	effective thermal conductivity \(\mathrm{[W/(m K)]}\)
template<class VolumeVariables>
static Scalar	effectiveThermalConductivity (const VolumeVariables &volVars)
	Effective thermal conductivity \(\mathrm{[W/(m K)]}\).
static Scalar	effectiveThermalConductivity (const Scalar sw, const Scalar lambdaW, const Scalar lambdaN, const Scalar lambdaSolid, const Scalar porosity, const Scalar rhoSolid=0.0)
	Returns the effective thermal conductivity \(\mathrm{[W/(m K)]}\).

Member Function Documentation

effectiveThermalConductivity() [1/3]

template<class Scalar, int numEnergyEquationsFluid>

Scalar Dumux::ThermalConductivitySimpleFluidLumping< Scalar, numEnergyEquationsFluid >::effectiveThermalConductivity ( const Scalar sw, const Scalar lambdaW, const Scalar lambdaN, const Scalar lambdaSolid, const Scalar porosity, const Scalar rhoSolid = 0.0 )

inlinestatic

Returns the effective thermal conductivity \(\mathrm{[W/(m K)]}\).

Parameters

sw	The saturation of the wetting phase
lambdaW	The thermal conductivity of the wetting phase in \(\mathrm{[W/(m K)]}\)
lambdaN	The thermal conductivity of the non-wetting phase in \(\mathrm{[W/(m K)]}\)
lambdaSolid	The thermal conductivity of the solid phase in \(\mathrm{[W/(m K)]}\)
porosity	The porosity
rhoSolid	The density of the solid phase in \(\mathrm{[kg/m^3]}\)

Returns

Effective thermal conductivity of the fluid phases

effectiveThermalConductivity() [2/3]

template<class Scalar, int numEnergyEquationsFluid>

template<class VolumeVariables>

Scalar Dumux::ThermalConductivitySimpleFluidLumping< Scalar, numEnergyEquationsFluid >::effectiveThermalConductivity ( const VolumeVariables & volVars )

inlinestatic

Effective thermal conductivity \(\mathrm{[W/(m K)]}\).

Parameters

volVars

volume variables

Returns

effective thermal conductivity \(\mathrm{[W/(m K)]}\)

Todo

TODO: Fix this law for changing wettability

effectiveThermalConductivity() [3/3]

template<class Scalar, int numEnergyEquationsFluid>

template<class VolumeVariables, class SpatialParams, class Element, class FVGeometry>

Scalar Dumux::ThermalConductivitySimpleFluidLumping< Scalar, numEnergyEquationsFluid >::effectiveThermalConductivity ( const VolumeVariables & volVars, const SpatialParams & spatialParams, const Element & element, const FVGeometry & fvGeometry, const typename FVGeometry::SubControlVolume & scv )

inlinestatic

effective thermal conductivity \(\mathrm{[W/(m K)]}\)

---

The documentation for this class was generated from the following file:

• thermalconductivitysimplefluidlumping.hh
